Product Code: 1000000926
€ 8.99
(Ex Tax: € 7.43)

2 or more € 8.79
4 or more € 8.59
6 or more € 8.39
10 or more € 8.09
25 or more € 7.99

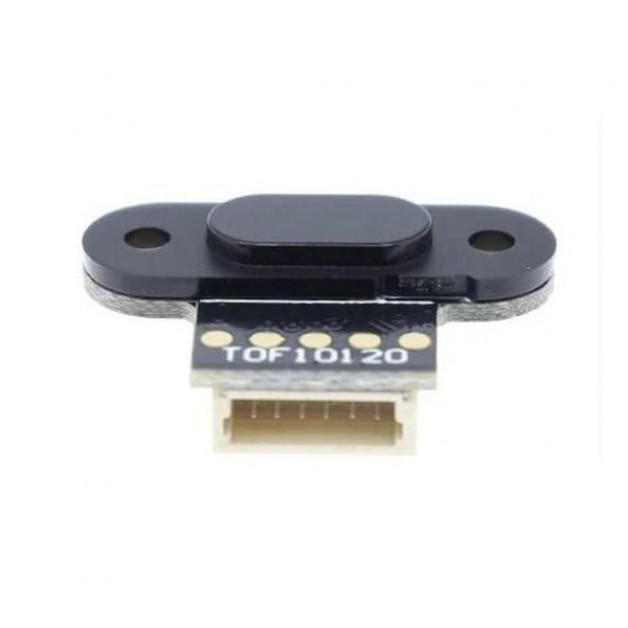

With this very small Time-of-Flight (TOF10120) sensor you can easily measure a distance using the reflection of light.

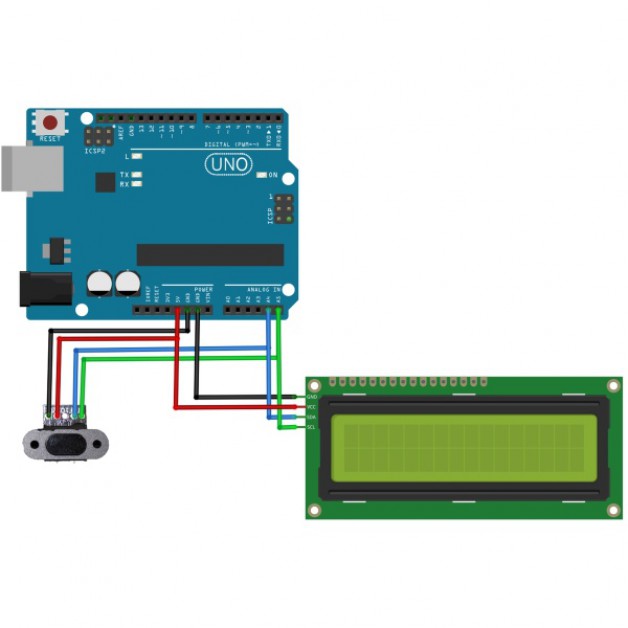

This TOF10120 laser range finder can be perfectly combined with an Arduino board.

Technical specifications:
  • Voltage: 3.3-5 Volt DC (power and signal)
  • Detection distance: 100mm - 1800mm (on flat white background)
  • Wavelength: 940nm

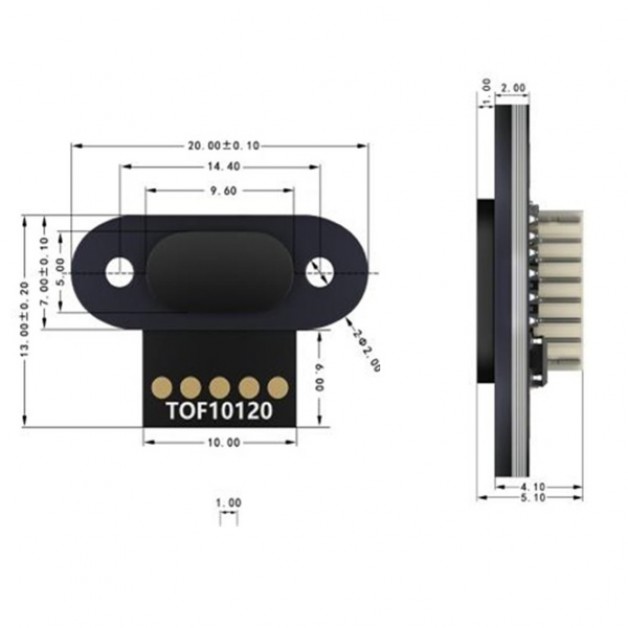

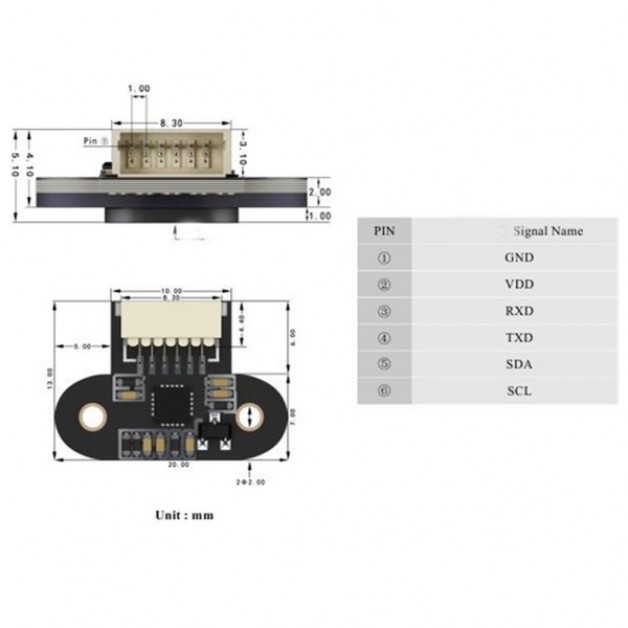

  • Dimensions: See images
  • Mounting: by means of 2x 2mm hole

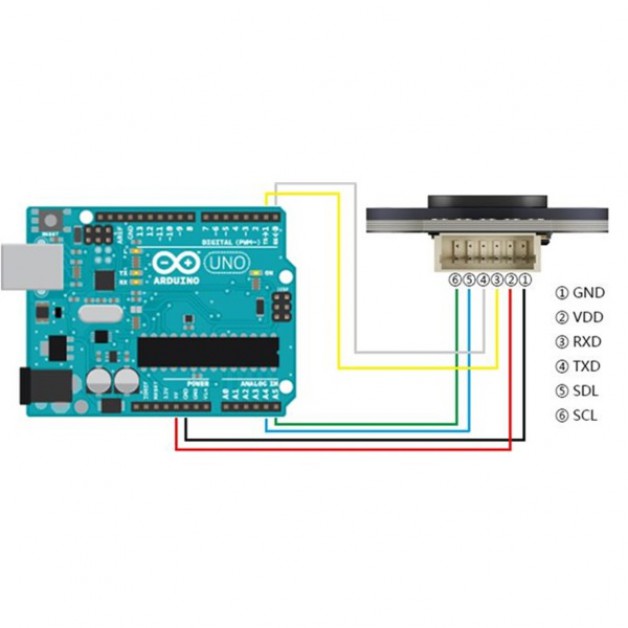

  • Pinout:
    • 1 GND: Ground
    • 2 VDD: 3.3-5V DC
    • 3 RXD: TTL input
    • 4TXD: TTL output
    • 5 SDA: I2C data signal
    • 6 SCL: I2C clock signal
Qty
Amount in stock: 7
