Tumbler Switch on-on (blue)
Tumbler Switch on-on (blue)
Tumbler Switch on-on (blue)

Tumbler Switch on-on (blue)

Product Code: 1000000856
€ 0.55
(Ex Tax: € 0.45)

10 or more € 0.52
25 or more € 0.49
50 or more € 0.45
100 or more € 0.42
500 or more € 0.39

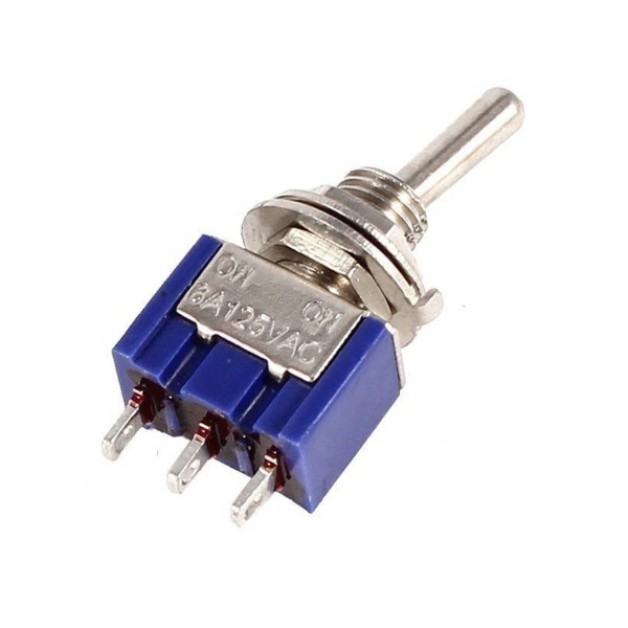

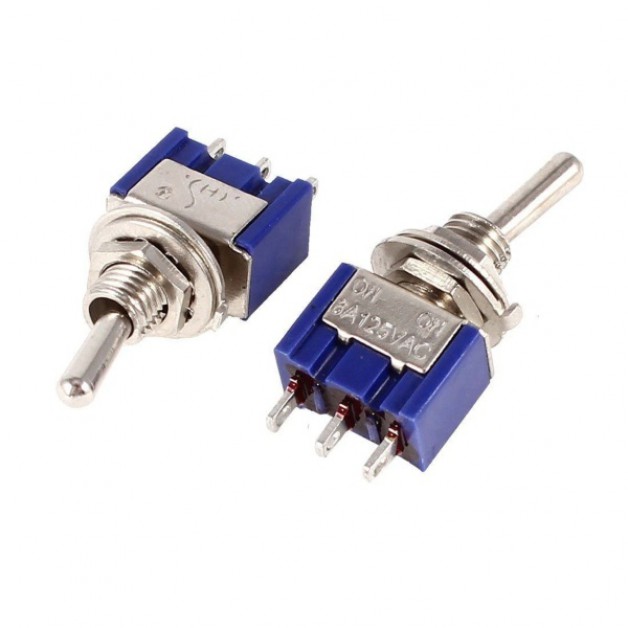

Tumbler switch with 3 pins and 2 (on/on) positions.
The two outer pins can be switched via the middle pin, depending on the position of the switch.
Suitable for 250VAC at max. 3A or 125VAC at max. 6A.


Technical Specifications:

  • Voltage (max): 250V AC
  • Power (max): 3A (250V) / 6A (125V)
  • Number of connections: 3 (2 poles)
  • Color: blue

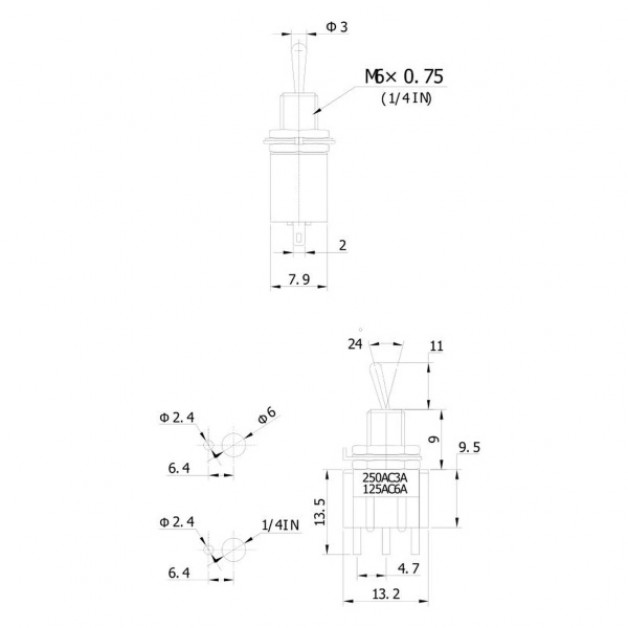

  • Size: 13.2 x 7.9 x 33.5mm (LxWxH)

Qty
Amount in stock: 40
