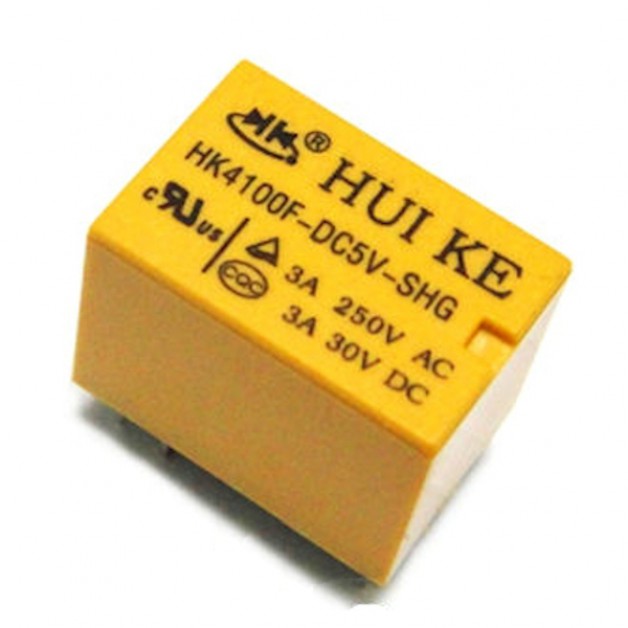

Huike Relais 5V (arduino)

Huike Relais 5V (arduino)

Product Code: 1000000268
€ 1.25
(Ex Tax: € 1.03)

5 or more € 1.00
10 or more € 0.85

This relay is very easy to use in experimental circuit boards for its corresponding grid size (grid size also corresponds to that of a breadboard). He is to be controlled by means of example. Arduino / Raspberry Pi / MicroChip directly. The relay can switch medium heavy loads and is also very well priced.

Technical Specifications:
  • Model: HK4100F-DC5V-SHG
  • Contact Type: 1x Exchange
  • Switchable voltage: 250VAC / 30VDC
  • Switchable Current: 3A
  • Life Span (unloaded): 10,000,000 operations
  • Life Span (loaded): 100,000 operations (250VAC - 3A)
  • Nominal voltage: 5V DC
  • Coil Resistance: 167 Ohm
  • Dimensions: 15.5mm x 10.5mm x 11.8mm (LxWxH)
  • Weight: about 6 grams
Qty
Amount in stock: 27
