LM358 OpAmp
LM358 OpAmp
LM358 OpAmp
LM358 OpAmp

LM358 OpAmp

Product Code: 1000000762
€ 0.89
(Ex Tax: € 0.74)

5 or more € 0.79
10 or more € 0.59

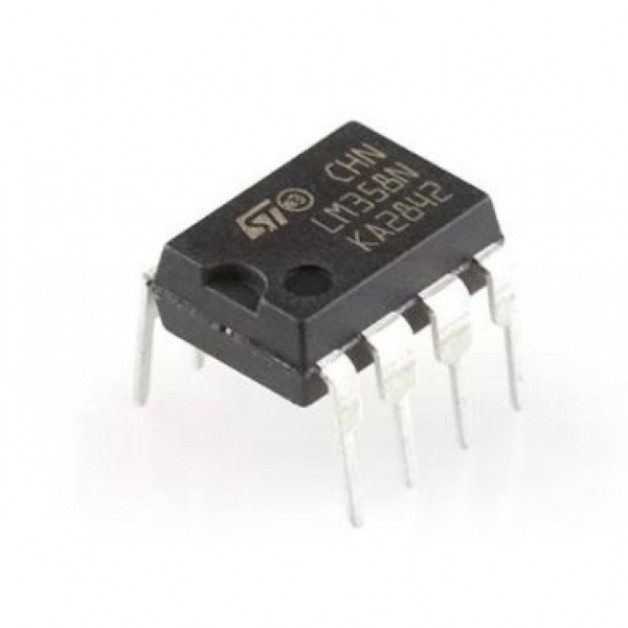

LM 358 Dual channel op amp in DIP housing.

Good standard op amp that can work well on a single supply voltage (3-20V).

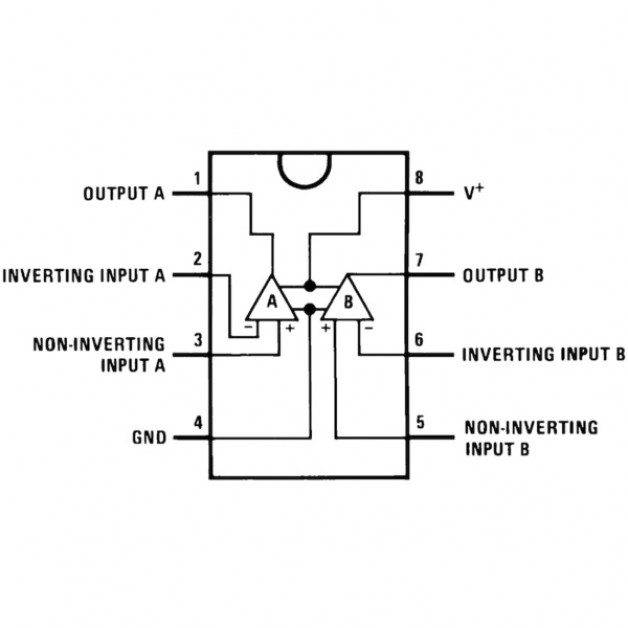

These devices consist of two independent, high-gain frequency compensated operational amplifiers designed to operate from a single or split power supply across a wide range of voltages.


Technical Specifications:
  • Gain (DC): 100dB
  • Bandwidth: 1MHz
  • Supply voltage: 3V ~ 20V
  • Dual power: ± 1.5V ~ ± 15V
  • Housing: DIP / PDIP
  • Number of Pins: 8
  • Working temperature: 0°C ~ +70°C
Qty
Amount in stock: 90
