Nema17 Stepper Motor (1.8 degrees | 4.0 kg/cm)
Product Code:1000000618 € 12.95
(Ex Tax:€ 10.70)
3 or more € 12.50
5 or more € 12.00

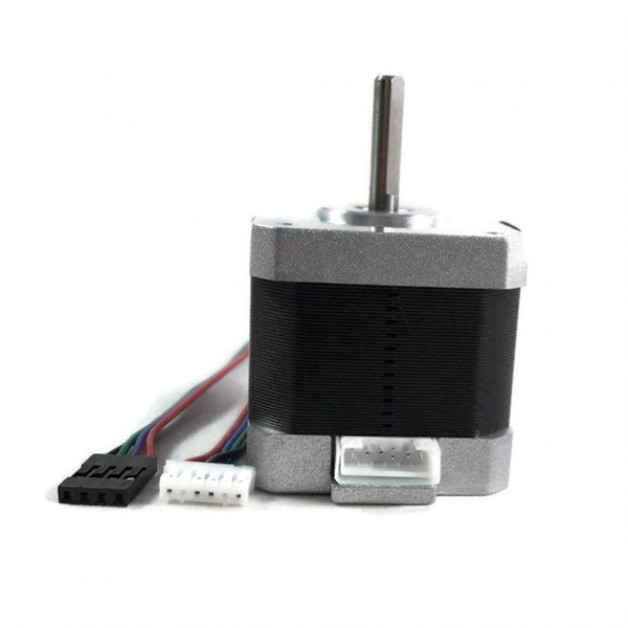

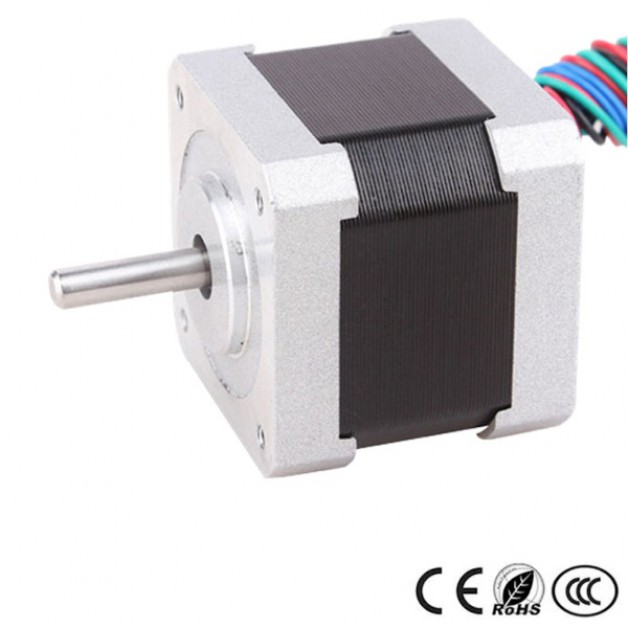

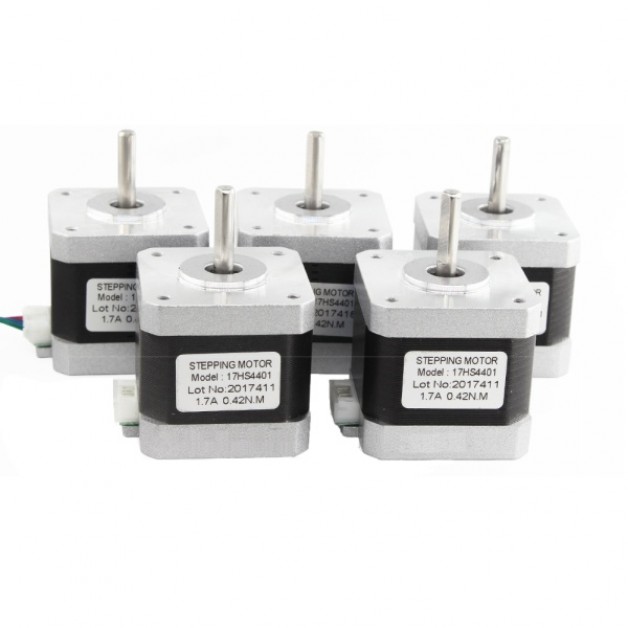

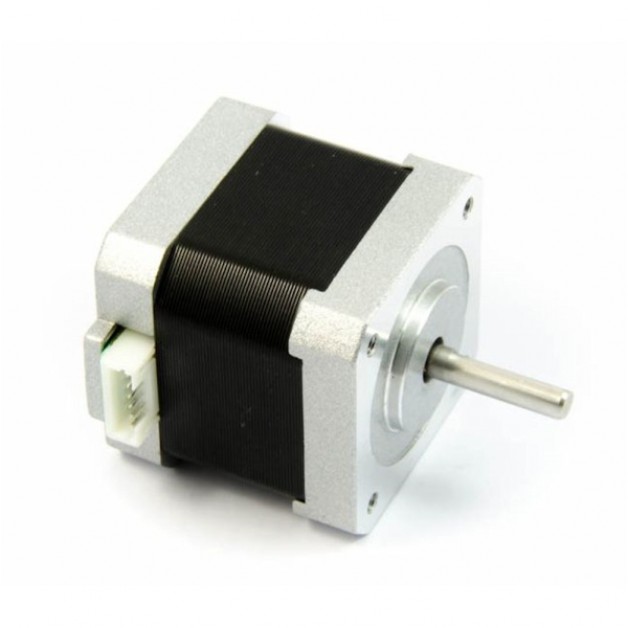

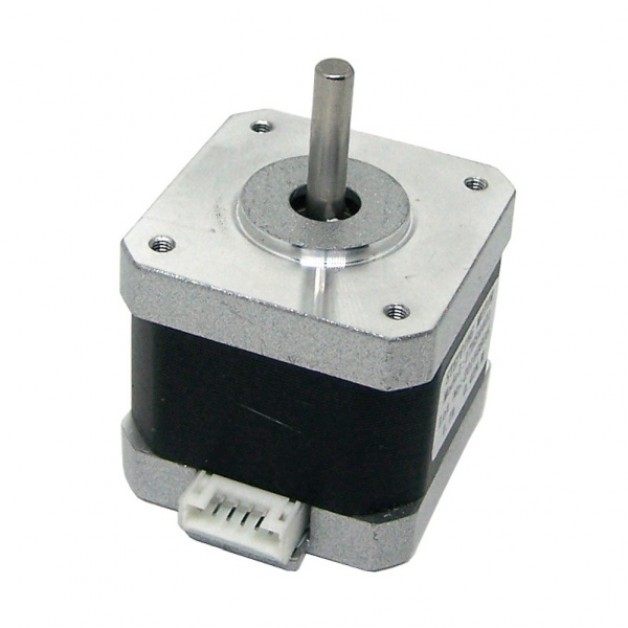

This bipolar Nema 17 stepper motor is ideally suited for CNC applications such as 3D printing and milling / laser engraving machines.
This engine can move in 1.8 degrees increments, the shaft of this engine is 5mm thick and 24mm long.
The engine further has a holding torque of no less than 4.0kg per centimeter.
With a stepper motor driver like the DRV8825 or Nema17 / Nema23 stepper driver, this engine is very easy to use and can be controlled up to 1/32 or 1/16 microstepping.

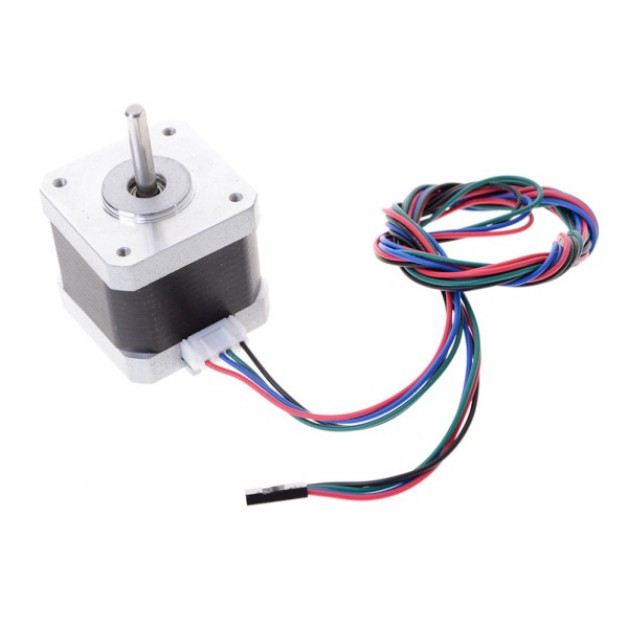

Black-green and red-blue are the two coil pairs to be connected.
Technical Specifications:
This engine can move in 1.8 degrees increments, the shaft of this engine is 5mm thick and 24mm long.
The engine further has a holding torque of no less than 4.0kg per centimeter.
With a stepper motor driver like the DRV8825 or Nema17 / Nema23 stepper driver, this engine is very easy to use and can be controlled up to 1/32 or 1/16 microstepping.
Black-green and red-blue are the two coil pairs to be connected.
Technical Specifications:
- Length: 40 mm
- Length as: 27mm
- Diameter axis: 5mm
- Hold coupling: 4.0 kg-cm
- Number of threads: 4
- Cable Length: Approx. 30cm
- Step angle: 1.8°
- Weight: approx. 280 grams
- Rated current: 1.7 A
- Type: 17HS4401
