DC-DC boost converter (2 - 24 volt)
Product Code: 1000000838€ 1.19
(Ex Tax: € 0.98)
10 or more € 1.09
25 or more € 0.99
50 or more € 0.95

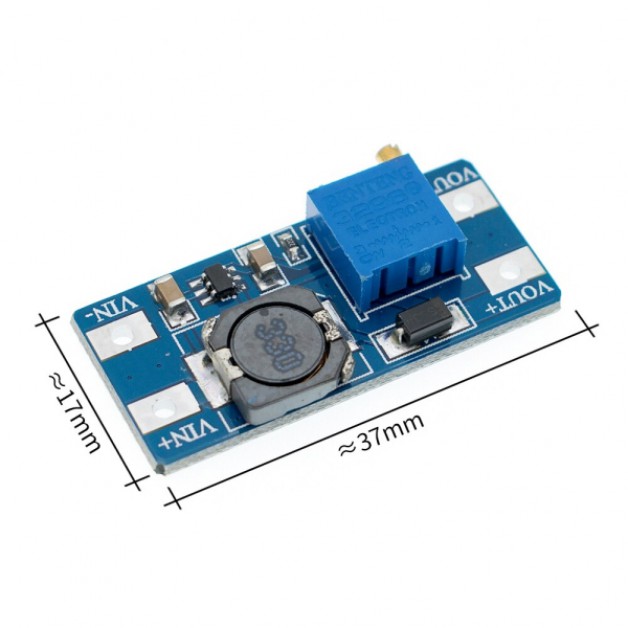

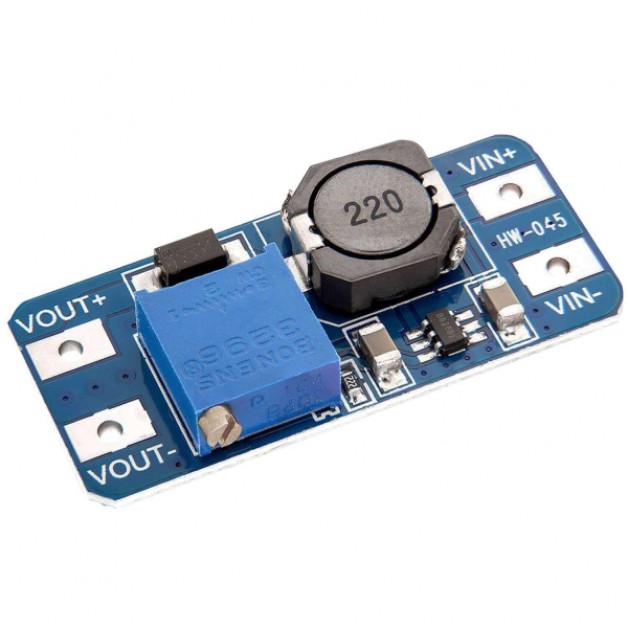

With this module it's very easy to convert a lower dc voltage to a stable higher dc voltage.
The level of the dc output voltage can be adjusted by means of a potentiometer.
This makes this module a good addition for example batterypacks to keep the ever dropping voltage at a stable level.
The module has an output of 4 Amps.
Technical Specifications:
When used above the 500mA input we recommend applying an additional cooling body.
Input voltage is lower as the output voltage.
The level of the dc output voltage can be adjusted by means of a potentiometer.
This makes this module a good addition for example batterypacks to keep the ever dropping voltage at a stable level.
The module has an output of 4 Amps.
Technical Specifications:
- Voltage (in): 2V - 24V
- Voltage (from): 5V - 28V
- Power (from): 2A (max)
- Efficiency: 96% (max)
- Frequency: 65kHz
When used above the 500mA input we recommend applying an additional cooling body.
Input voltage is lower as the output voltage.
