Breadboard Power Supply
Breadboard Power Supply

Breadboard Power Supply

Product Code: 1000000432
€ 1.79
(Ex Tax: € 1.48)

5 or more € 1.75
10 or more € 1.69

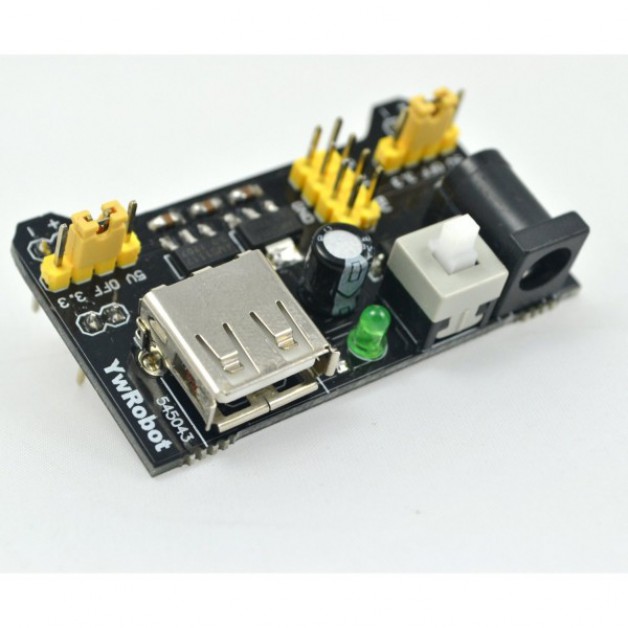

A very handy breadboard power supply to connect to a breadboard with dual power rails (click here for matching breadboard).
This module is connected by means of an on- off push button.
The module also has jumpers at both sides that allow independent of eachother a 3.3 volt and/or 5 volt voltage supply. For example, you might decide to obtain different voltages on your breadboard on the left and right side.

Technical Specifications:
  • U(in): 6.5 - 12VDC (2.1mm connector or USB)
  • U(out): 3.3V and/or 5V (adjustable with jumper)
  • A(max): 700ma
  • Dimensions: 53mm x 32mm x 15mm (LxWxH)
Amount in stock: 40
