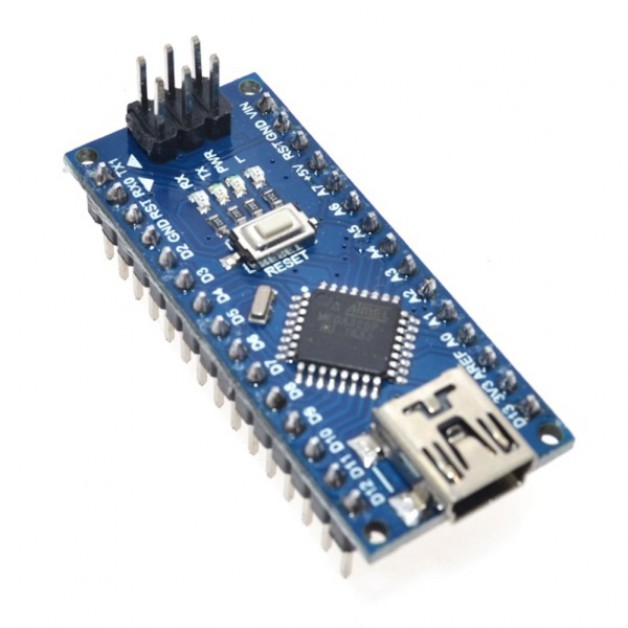

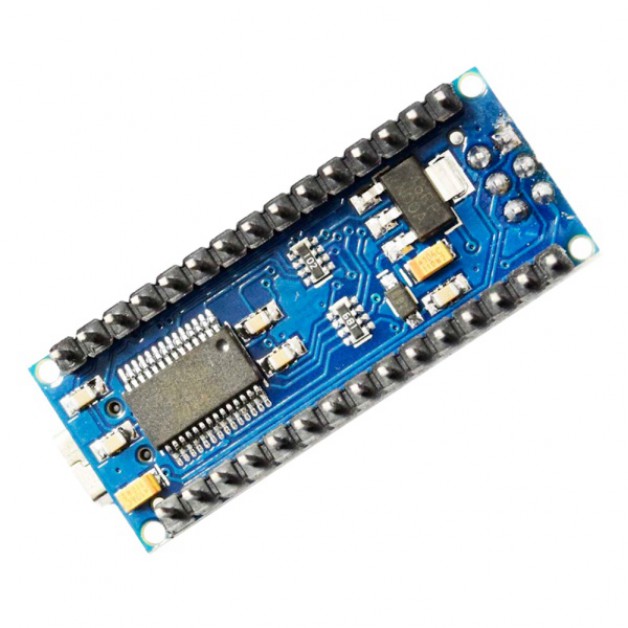

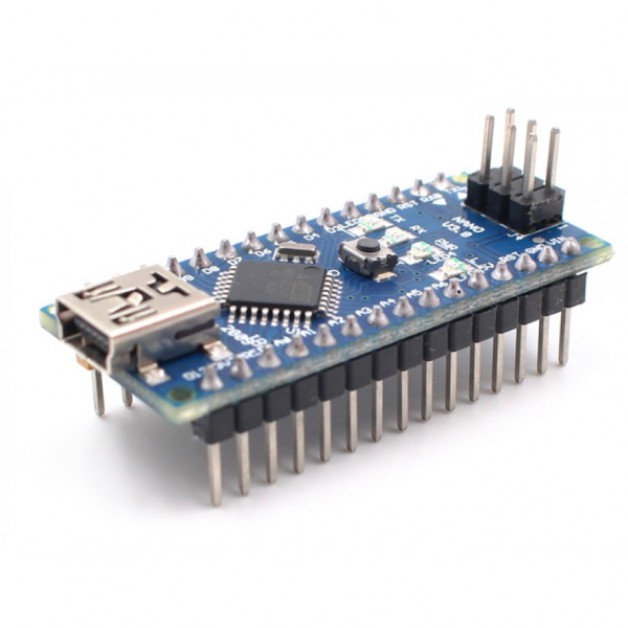

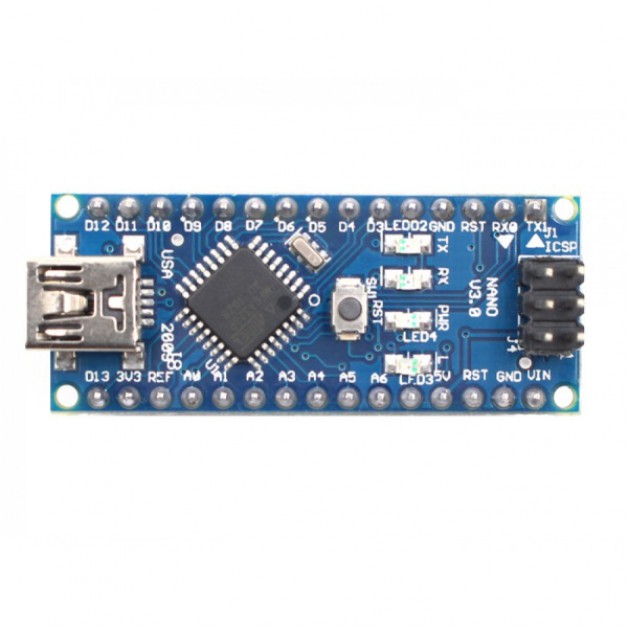

Arduino Nano R3 (Compatible)
Arduino Nano R3 (Compatible)
Arduino Nano R3 (Compatible)
Arduino Nano R3 (Compatible)

Arduino Nano R3 (Compatible)

Product Code: 1000000597
€ 8.95
(Ex Tax: € 7.40)

The Arduino Nano is a small, complete, and breadboard-friendly sign based on the ATmega328.
This board uses the same chip as the Arduino UNO, but is much smaller.
The Nano doesn't have a DC power jack, but is driven by means of a mini USB cable.

This is the 3rd revision.
This version has a stronger RESET circuit.
Also SDA and SCL pins are added to the AREF pin.
Also two new pins at the RESET pin (the pin IOREF). This allows shields to adapt to the voltage of the board / nano.
In the future shields will becoma compatible with both 5V and 3.3V versions.
The 2nd pin is not connected and is reserved for future updates.

Technical Specifications:
  • Microcontroller: ATmega328P
  • Speed: 16MHz
  • Working voltage: 5 Volt
  • Input voltage (limits): 6V - 20V
  • Input Voltage (recommended): 7V - 12V
  • Digital I/O Pins: 14 (of which 6 PWM possible)
  • Analog Inputs: 8
  • Current per pin: 40mA
  • Memory: 32KB (Flash) / 2KB (SRAM) / 1KB (EEPROM)

In case you need the driver for this Arduino board, you can download it here.
Amount in stock: 12
