ESP12-E (ESP8266-12E) Wifi module
Product Code: 1000000834€ 4.95
(Ex Tax: € 4.09)
5 or more € 4.75
10 or more € 4.49
25 or more € 4.25
The ESP8266 WiFi module is a TTL "Serial to Internet" module.
This module makes it possible to easily connect to a Wi-Fi signal.
Technical Specifications:
This module makes it possible to easily connect to a Wi-Fi signal.
Technical Specifications:
- Type: ESP-12E
- Voltage: 3.3V
- Supported types: 802.11 b / g / n
- Wi-Fi Direct (P2P), soft-AP
- Integrated TCP / IP protocol stack
- Ability: + 19.5dBm output in 802.11b mode
- Consumption (off): <10uA
- Consumption (Standby): <1.0mW
- Communication: SDIO 1.1 / 2.0, SPI, UART
- Wake up time: <2ms

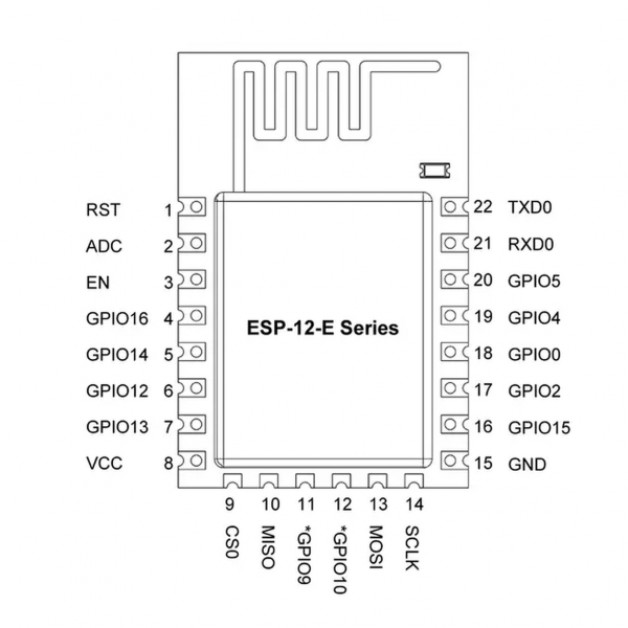

- 2x8 + 1x6 2mm header
- Built PCB printed antenna
- GPIOs: 11
- UART URXD / UTXD
- RESET
Qty
Amount in stock: 9
