Stepper Motor + Driver Board
Product Code:Aanbieding12 € 4.49
(Ex Tax:€ 3.71)
5 or more € 4.00

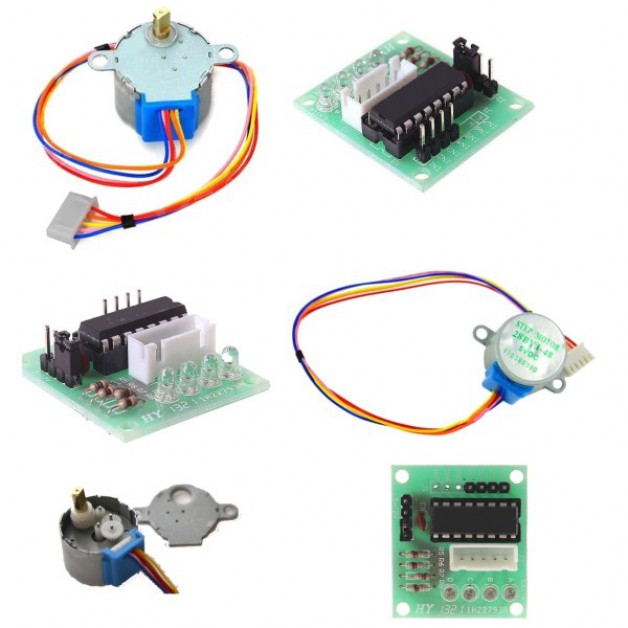

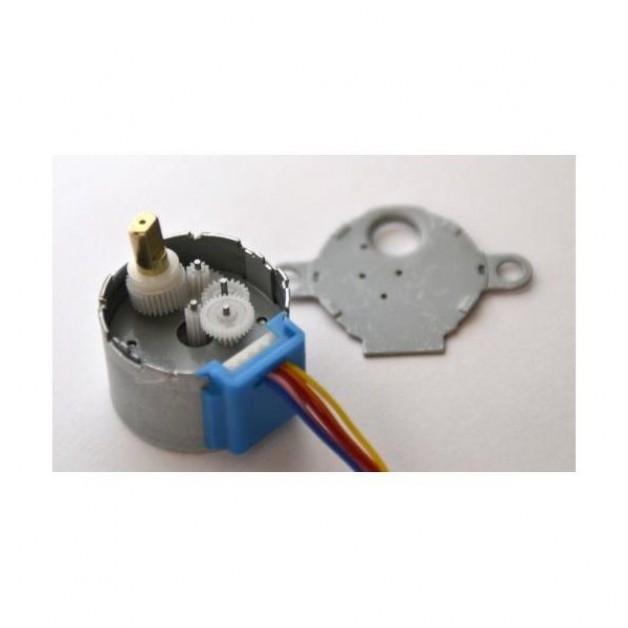

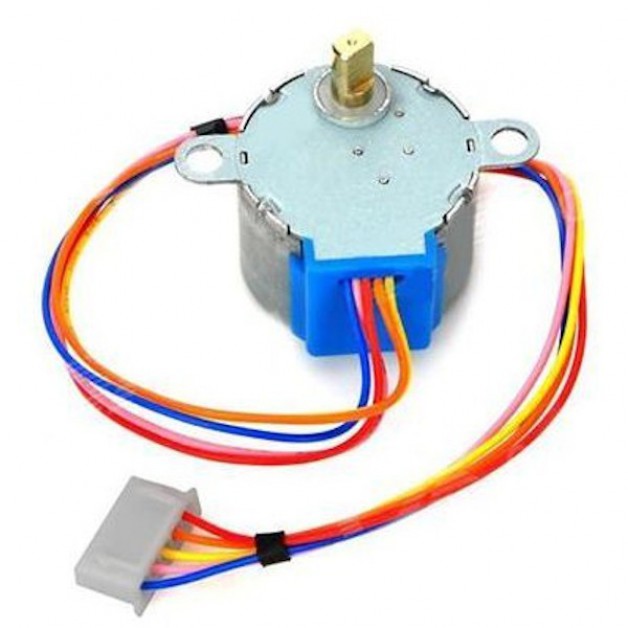

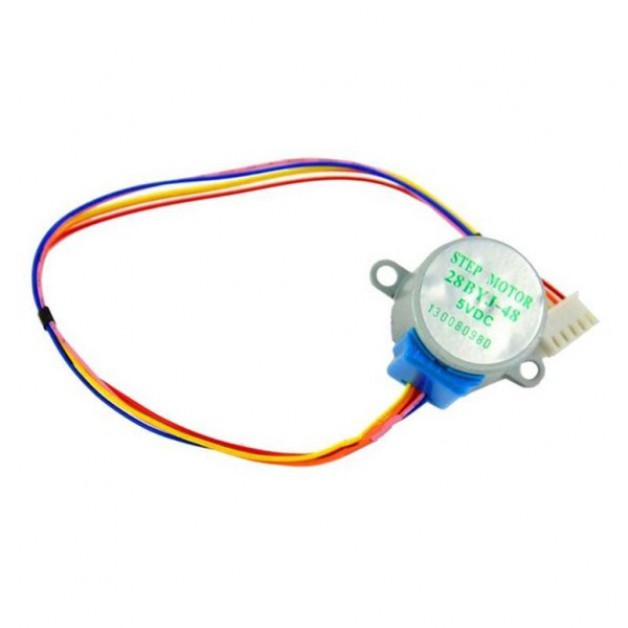

This is a composition of the Stepper Motor (article number: 1000000394) and
the Stepper Motor Control Board (article number: 1000000395
Technical Specifications:
Technical Specifications:

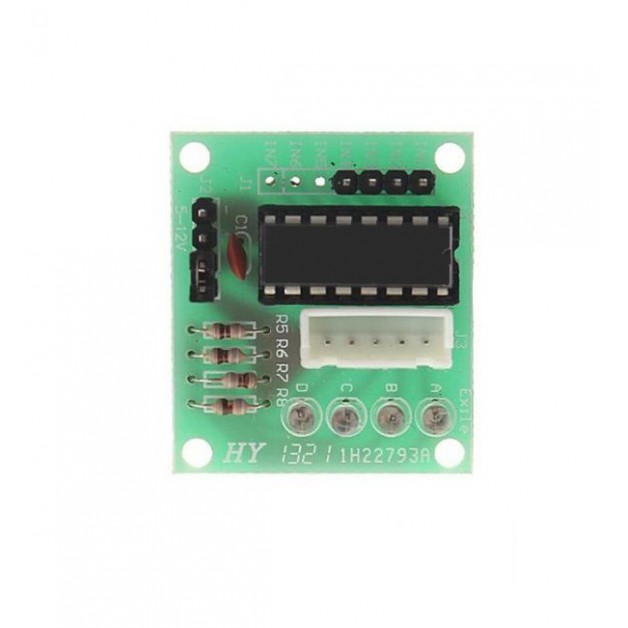

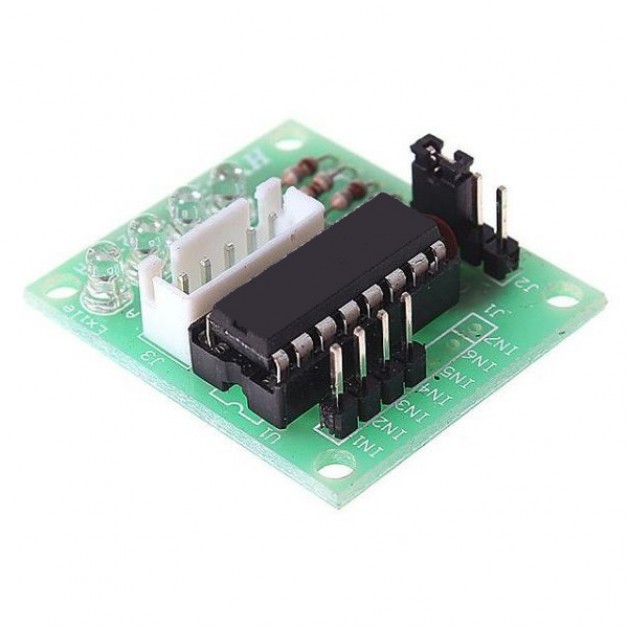

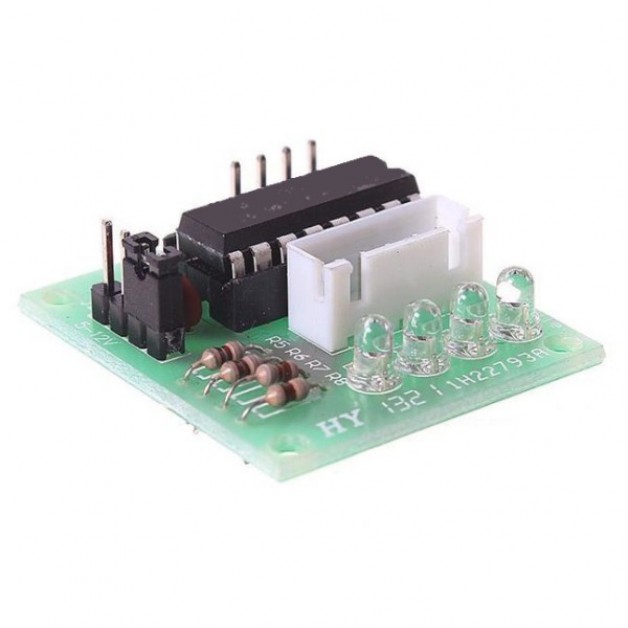

the Stepper Motor Control Board (article number: 1000000395
Technical Specifications:
- Diameter: 28 mm
- Voltage: 5V
- Frequency: 600 Hz (no-load pull)
- Number of Phases: 4
- Ratio: 1/64
- Strength:> 34.3 mNm (at 120 Hz)
- Noise: <40 dB (at 120 Hz)
- Insulation class: A
- Insulation resistance:> 10 MOhm (at 500 volts)
- Weight: approx. 35 grams
Technical Specifications:
- Voltage: 5V
- Power (max.): 500mA (per channel)
- Dimensions: 28mm x 28mm x 20mm
- Weight: about 10 grams
Qty
Amount in stock: 29
