Product Code: 1000000648

€ 4.95
(Ex Tax: € 4.09)

5 or more € 4.59
10 or more € 4.19

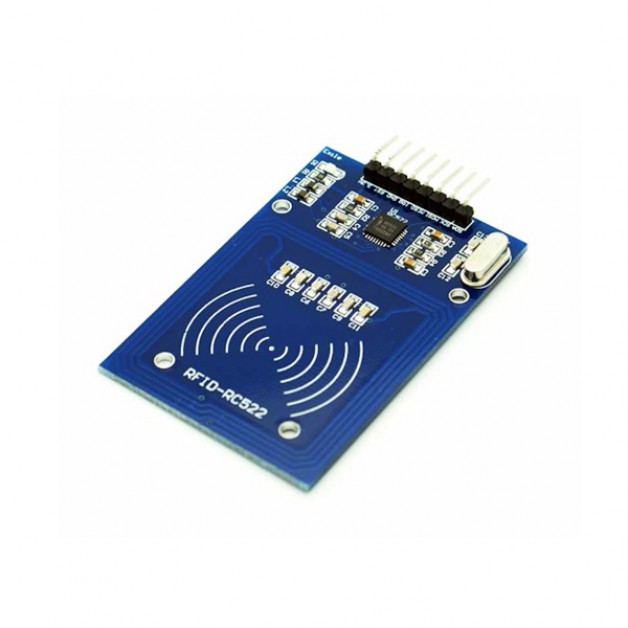

This RFID kit makes it possible to read and describe all RFID tags that work on the 13.56MHz frequency.
The MF RC522 uses advanced modulation and demodulation integrated in the 13.56MHz contactless chips.
This module also supports ISO14443A frames and error detection along with the fast CRYPTO1 encryption algorithm.

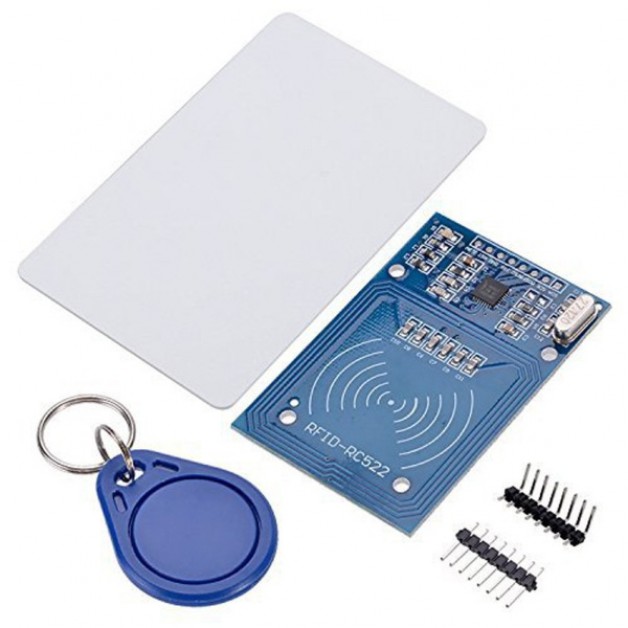

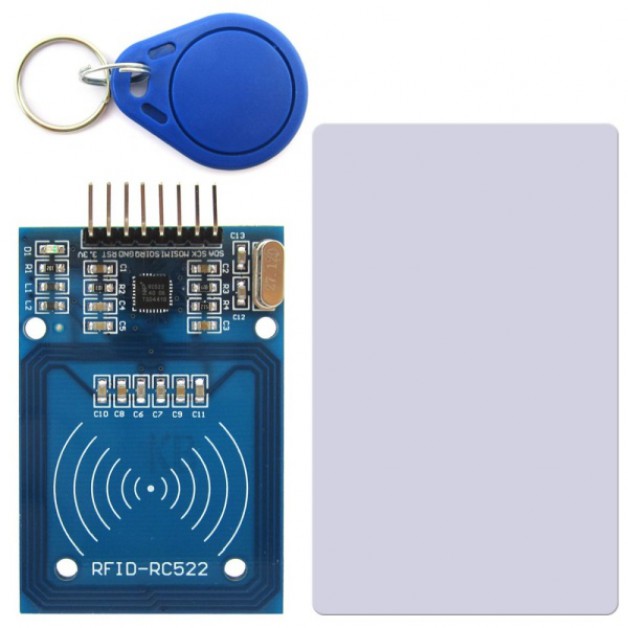

Content Package:
  • 1x RFID-RC522 Module

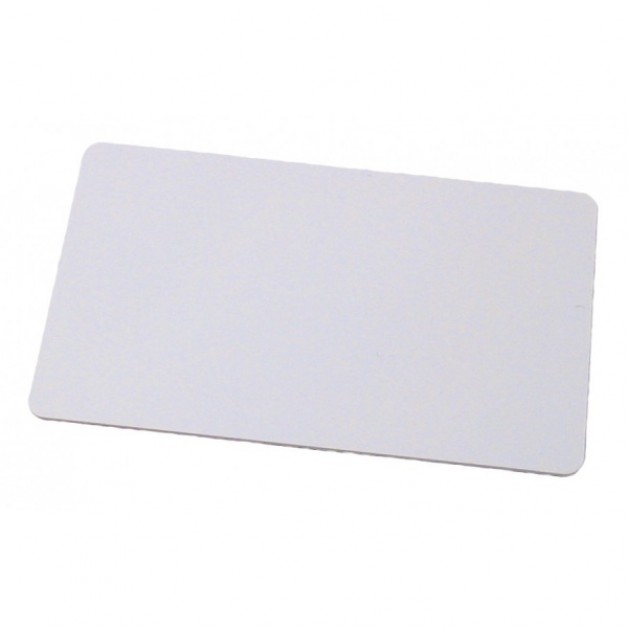

  • 1x Blank Card

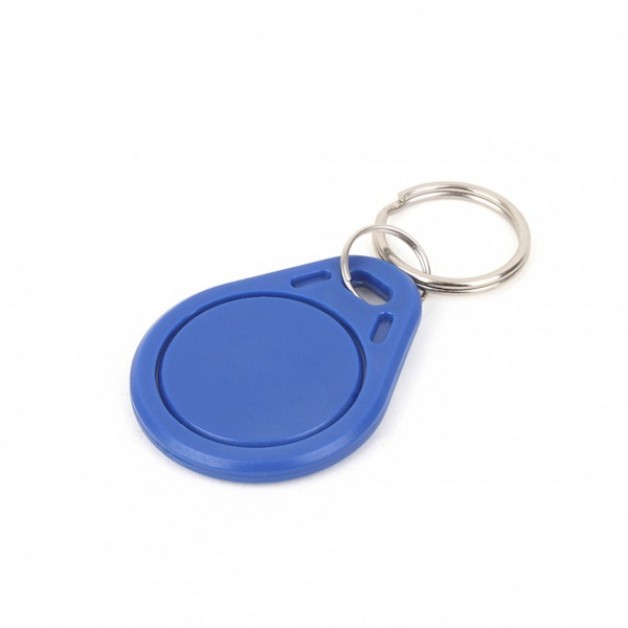

  • 1x Keychain
  • 1x Straight header
  • 1x Curve header

Technical Specifications:
  • Supply voltage: 3.3 Volts
  • Consumption (at rest): 13mA (max.)
  • consumption (asleep): approx. 80uA
  • Frequency: 13.56 MHz
  • Interface: SPI
  • Supported cards: S50, S70, Ultra Light, Pro, Desfire, OV Chip card
  • Transport speed: 10Mb / s
  • Dimensions: 60mm x 40mm x 5mm
  • Weight: approx. 90 grams
