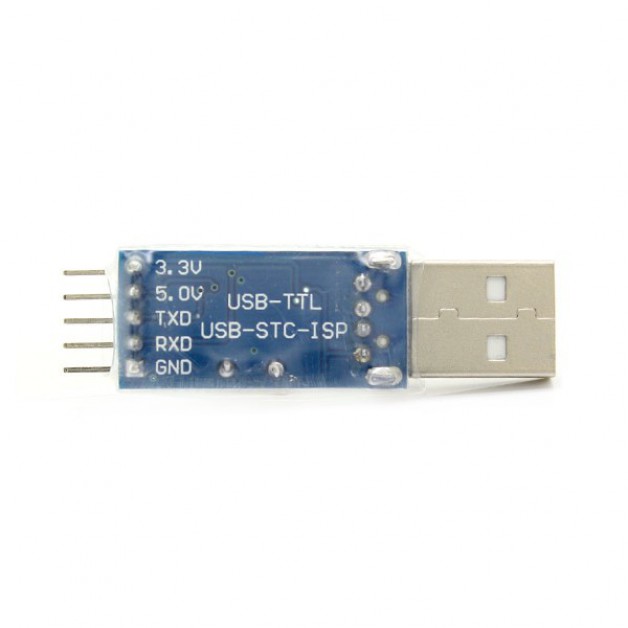

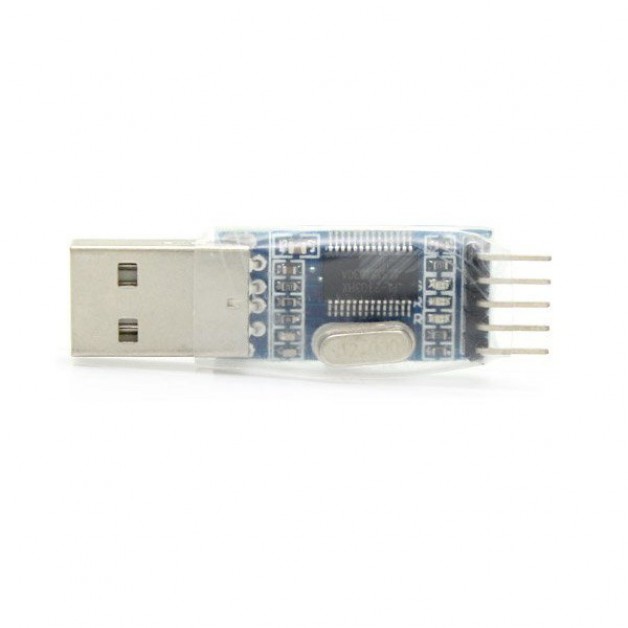

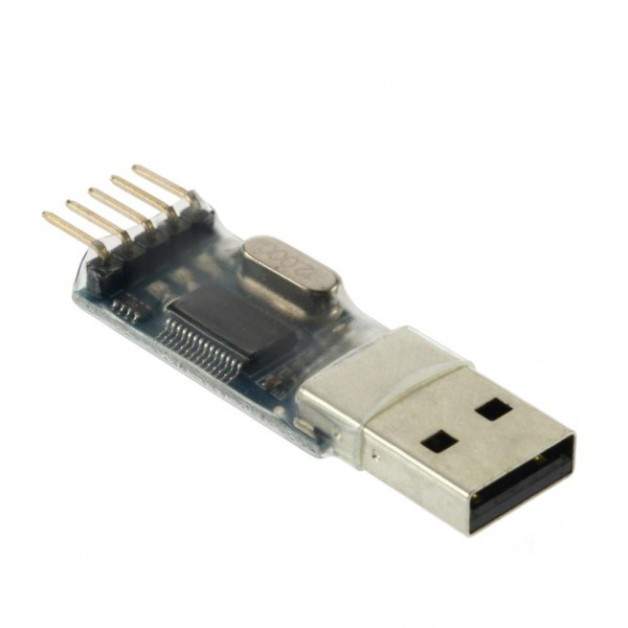

PL2303HX USB to TTL adapter
PL2303HX USB to TTL adapter
PL2303HX USB to TTL adapter

PL2303HX USB to TTL adapter

Product Code: 1000000407

€ 1.85
(Ex Tax: € 1.53)

Very useful if your Arduino has a USB interface (such as the case with the Arduino Pro Mini).
This module uses a dedicated USB chip.
The dedicated USB chip ensures that the communication is more stable than the cheaper USB TTL adapters.
This module is tightly wrapped in heat-shrink to prevent short circuits.
This adapter can be used for both programming and communication with your computer.

Technical Specifications:
  • Chip: PL2303HX
  • Over current protection: Yes
  • Communication LED indicator: Yes
  • Pegs: RXD, TX, VCC (5V & 3.3V), GND
  • Grid: 2.54mm

In case you need the driver, you can download it here.
We also have a guide available online with the workaround if you encounter any issues when using this adapter i.c.m. Windows 8 (or higher).
Workaround PL2303HX.
