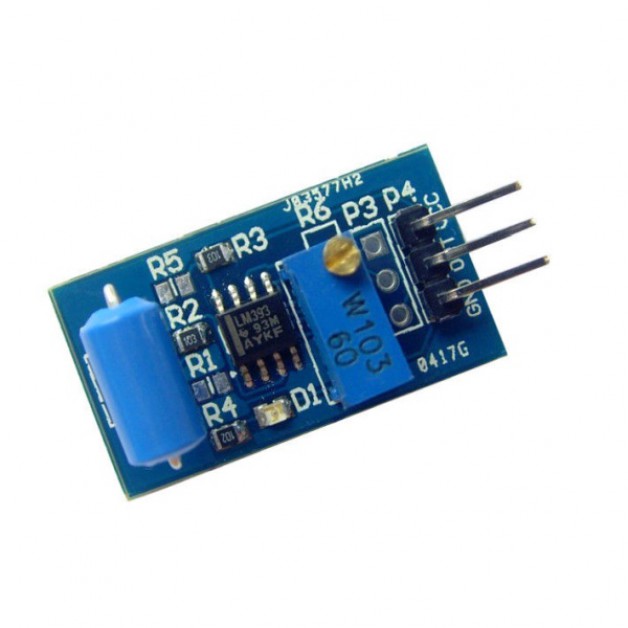

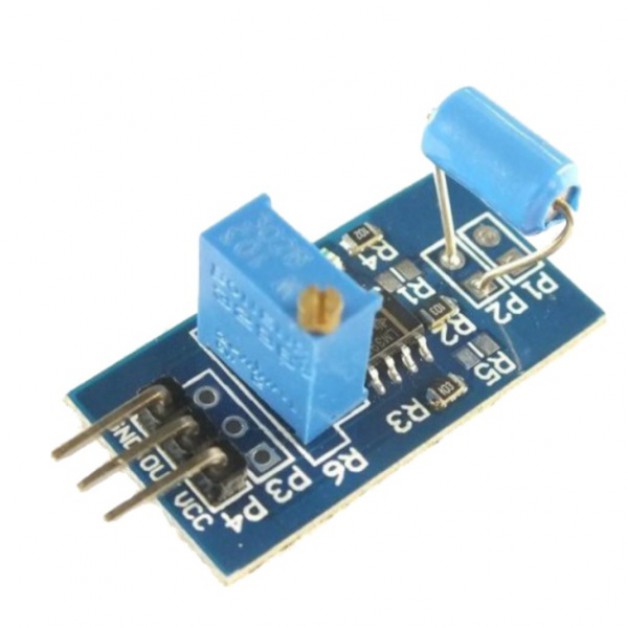

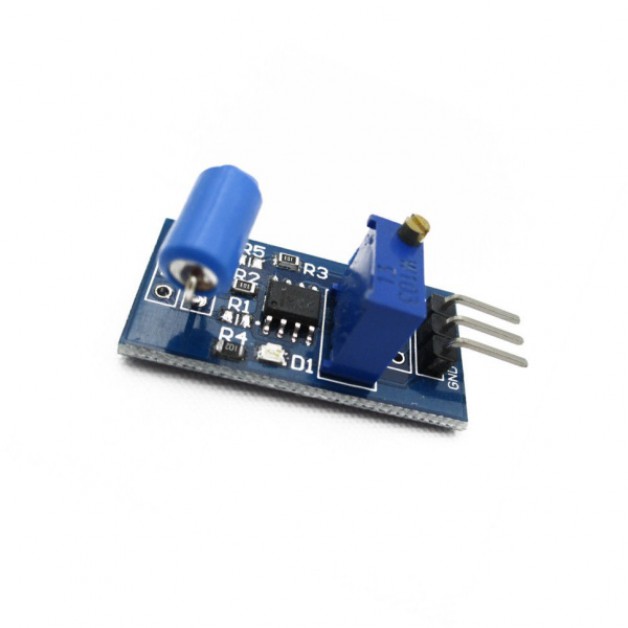

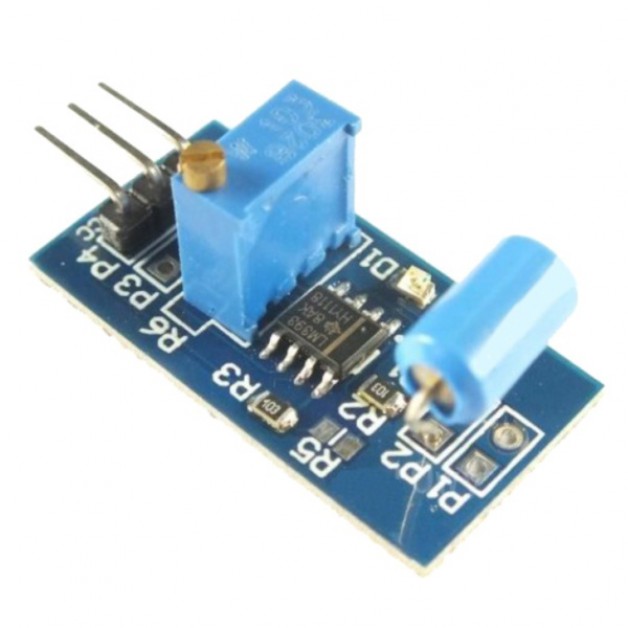

Tilt Sensor Module (LM393)
Tilt Sensor Module (LM393)
Tilt Sensor Module (LM393)
Tilt Sensor Module (LM393)

Tilt Sensor Module (LM393)

Product Code: 1000000644
€ 1.99
(Ex Tax: € 1.64)

5 or more € 1.95
10 or more € 1.89

This sensor module delivers a signal when tilted.
Built into an object it's able to check whether the object is tilted.

Technical specifications:
  • Voltage: 3.3V - 5V
  • Adjustable sensitivity: Yes
  • Output (signal): Digital
  • Output (optical): LED (on when tilted)
  • Comparator chip: LM393
  • Dimensions: approx. 16mm x 30mm x 10mm
  • Weight: approx. 10 grams

Pinout:
  • VCC: 3.3V - 5V
  • GND: GND
  • DO: Digital Output (0 or 1)
