Product Code: 1000000623

€ 3.79
(Ex Tax: € 3.13)

Very handy if your Arduino does not contain a USB interface (for example, as is the case with the Arduino Pro Mini).
This USB to-serial adapter makes it easy to connect a TTL serial device to a computer.

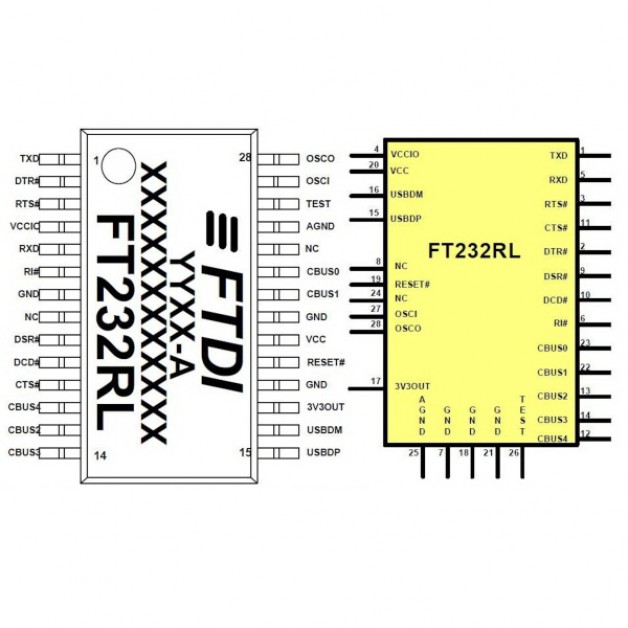

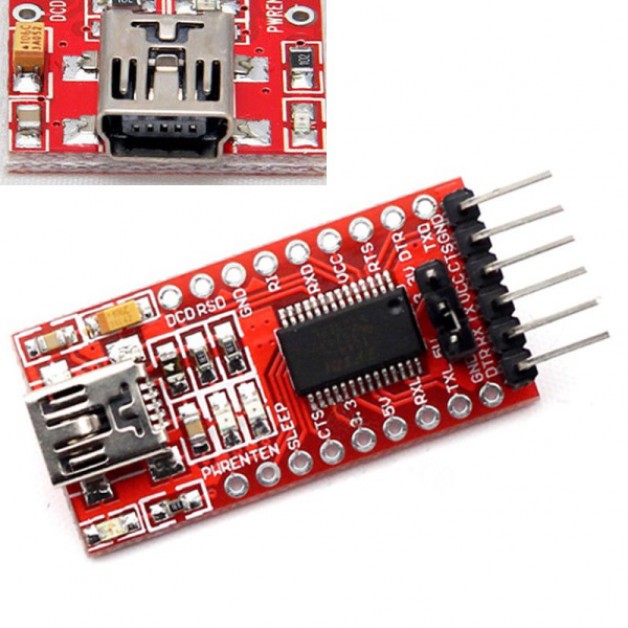

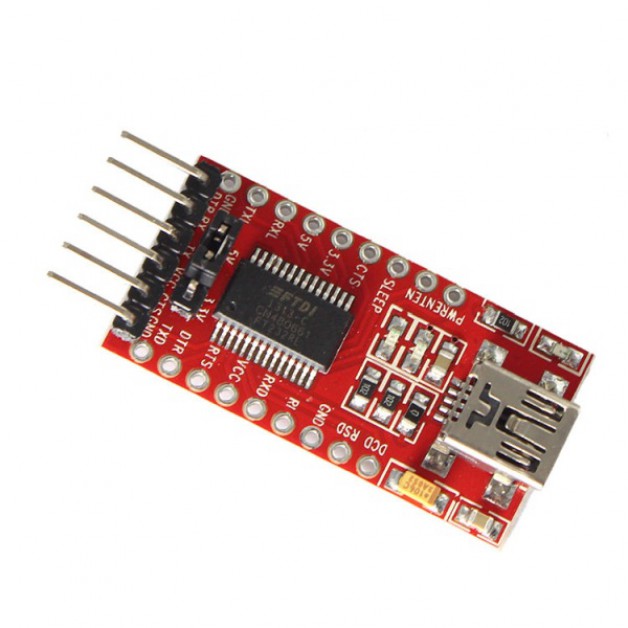

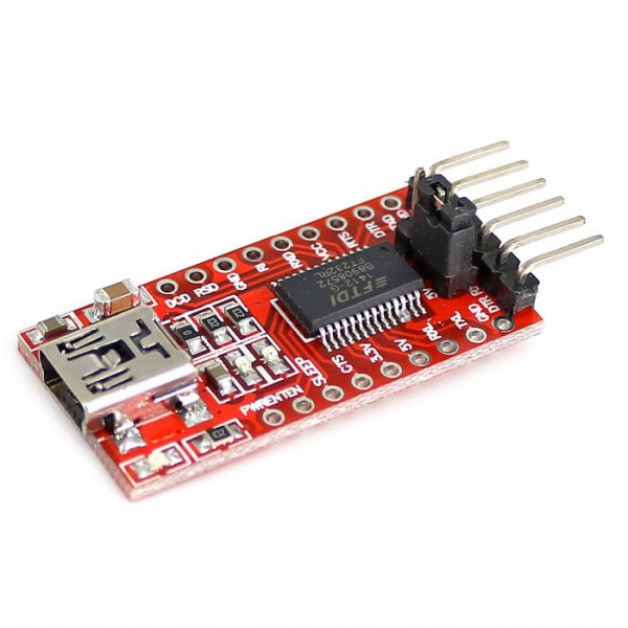

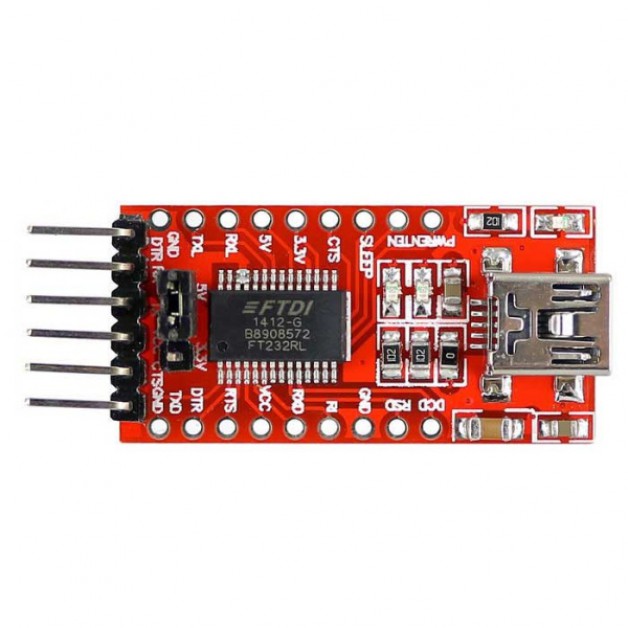

The board contains a USB connector and the FT232RL FTDI USB to UART bridge, all control and GPIO pins are brought out.

Available pins:
  • DCD
  • RSD
  • GND
  • RI
  • RXD
  • VCC
  • RTS
  • DTR
  • TXD
  • GND
  • CTS
  • VCC
  • TX
  • RX
  • DTR
  • GND
  • TXL
  • RXL
  • 5V
  • 3.3V
  • CTS
  • SLEEP
  • TXDEN
  • PWREN

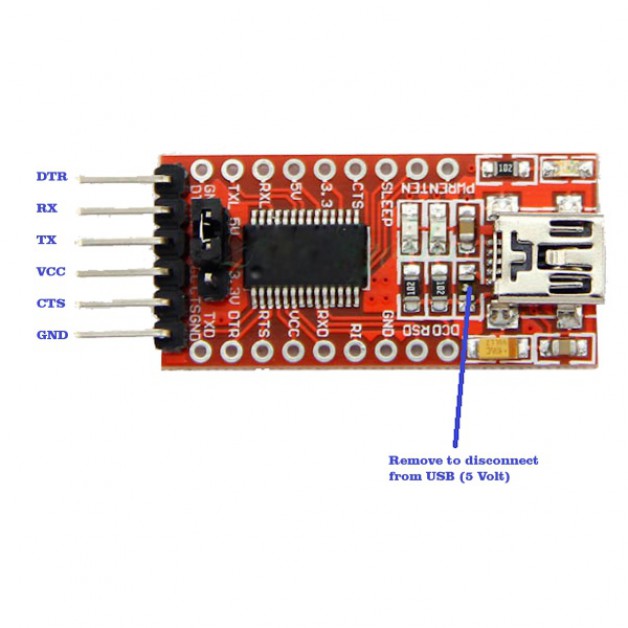

Pins already with Header:
  • GND
  • CTS
  • VCC
  • TX
  • RX
  • DTR

ATTENTION!!!
Eeprom not flashable.
I/O signals can NOT be converted by FT Prog / Mprog!
