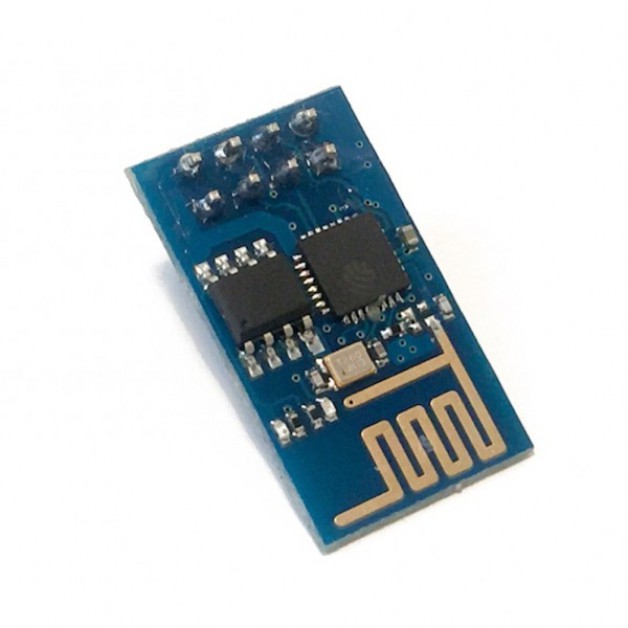

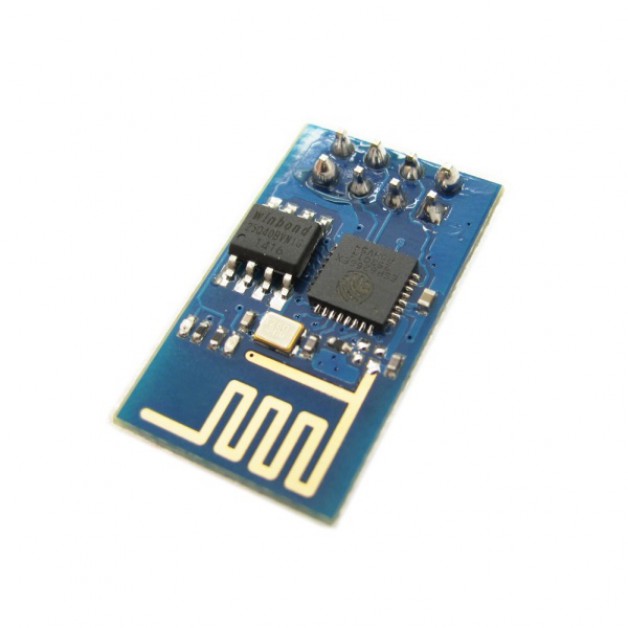

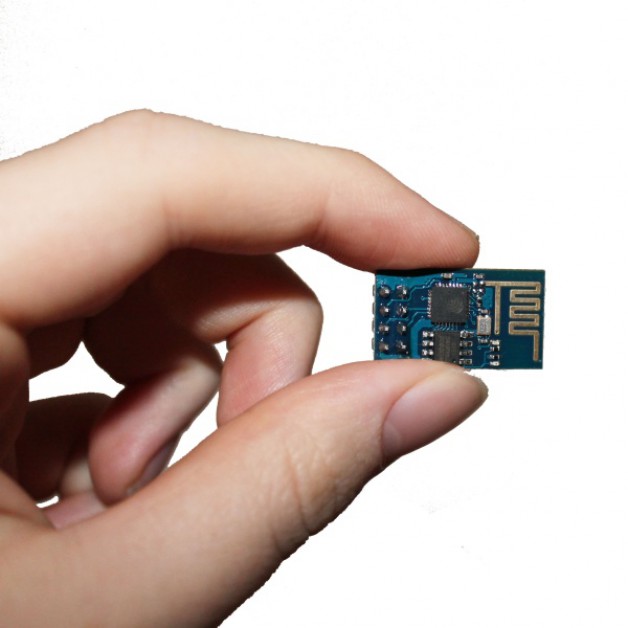

ESP8266 Wifi module
Product Code: 1000000551€ 4.89
(Ex Tax: € 4.04)
5 or more € 4.49
10 or more € 4.19
The ESP8266 WiFi module is a TTL "Serial to Internet" module.
This module makes it possible to easily connect to a Wi-Fi signal.
Technical Specifications:
This module makes it possible to easily connect to a Wi-Fi signal.
Technical Specifications:
- Voltage: 3.3V
- Supported types: 802.11 b / g / n
- Wi-Fi Direct (P2P), soft-AP
- Integrated TCP / IP protocol stack
- Ability: + 19.5dBm output in 802.11b mode
- Consumption (off): <10uA
- Consumption (Standby): <1.0mW
- Communication: SDIO 1.1 / 2.0, SPI, UART
- Wake up time: <2ms

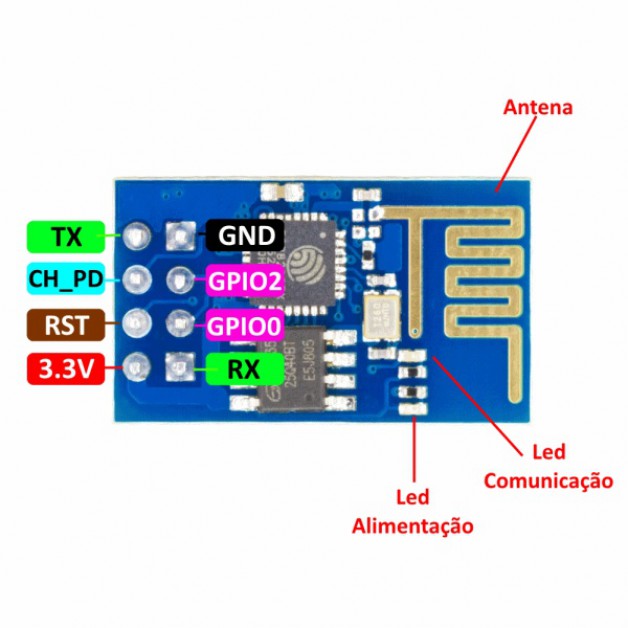

- 2x4 2.54 mm header
- Built PCB printed antenna
- 3 GPIOs: GPOI 0/2/16
- UART URXD / UTXD
- RESET and CH_PD (power down)
Qty
Amount in stock: 21
