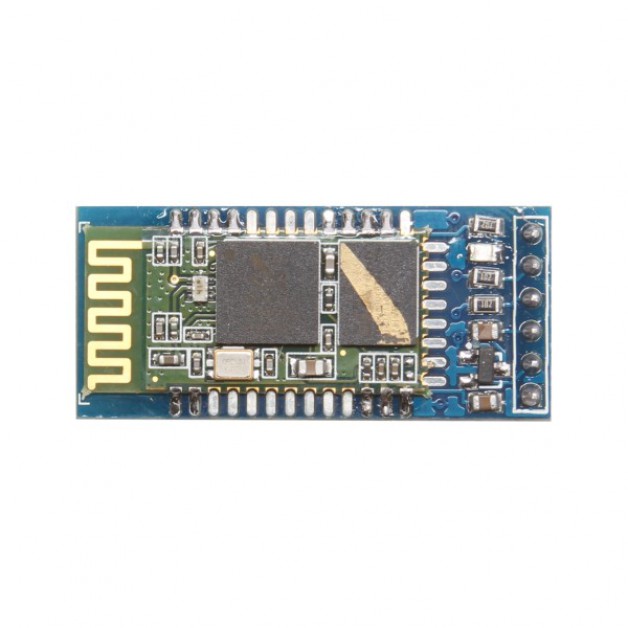

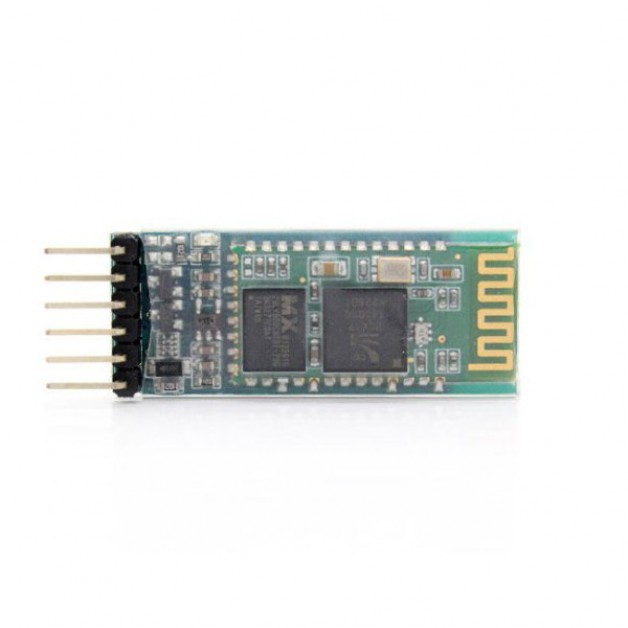

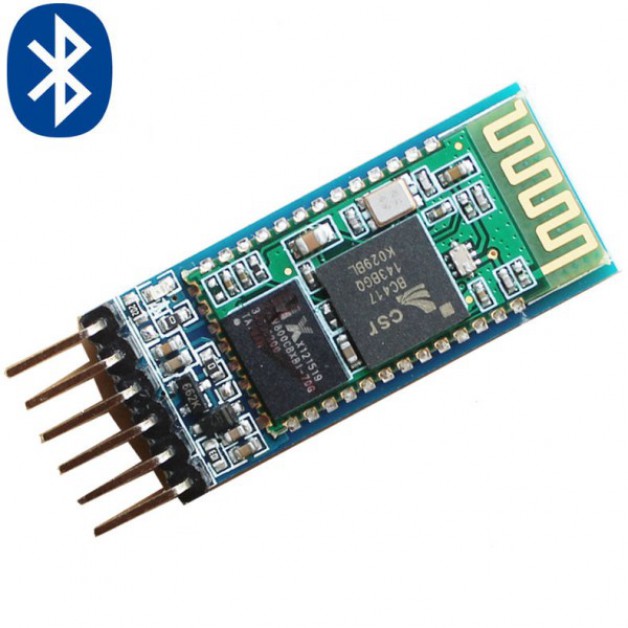

Bluetooth module HC-05
Bluetooth module HC-05
Bluetooth module HC-05
Bluetooth module HC-05
Bluetooth module HC-05
Bluetooth module HC-05
Bluetooth module HC-05
Bluetooth module HC-05

Bluetooth module HC-05

Product Code: 1000000521

€ 6.99
(Ex Tax: € 5.78)

3 or more € 6.49

This module has the Arduino sign the ability to communicate via bluetooth with your computer, laptop or phone.

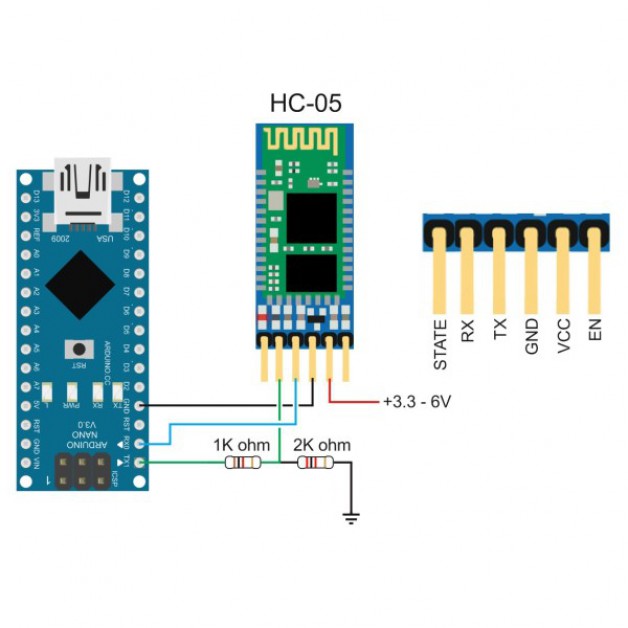

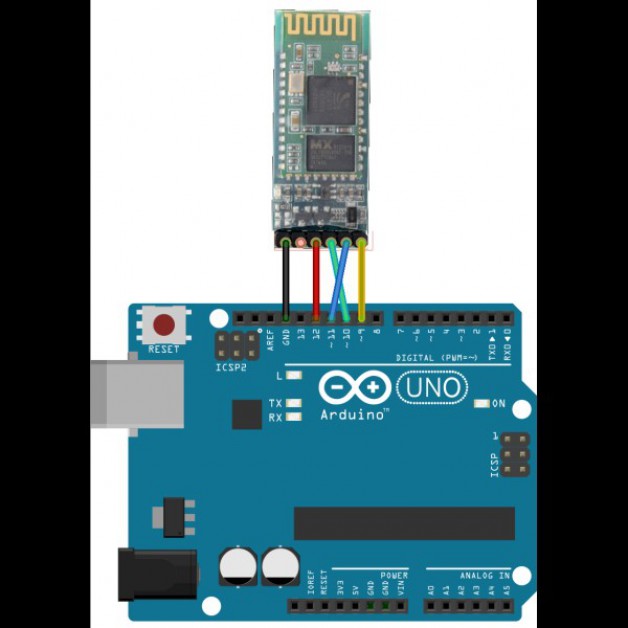

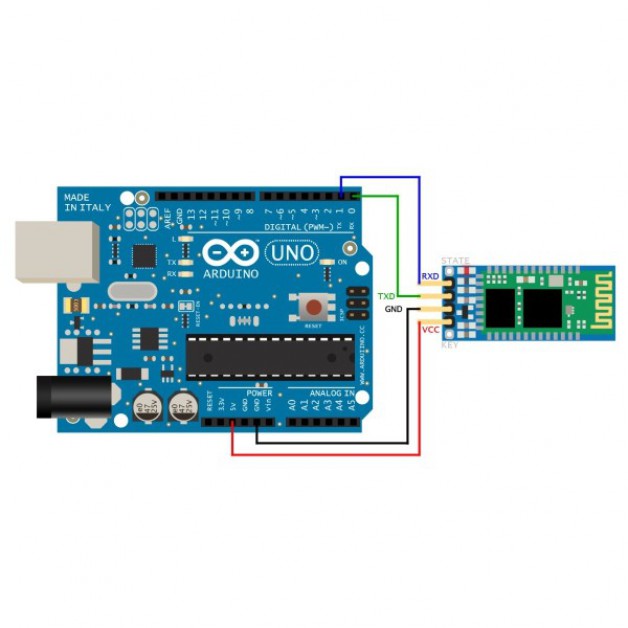

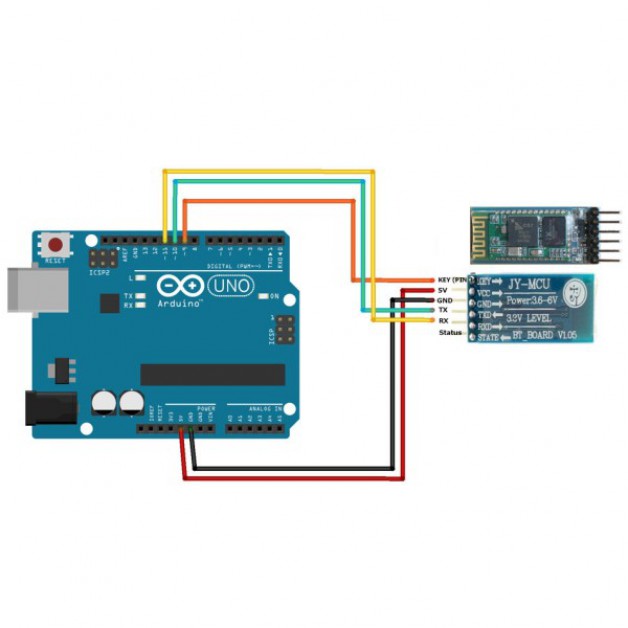

The module is fully complete (module + base plate), so it is easy to link to the Arduino.

Technical Specifications:
  • Protocol: Bluetooth v2.0 + EDR
  • Frequency: 2.4 GHz ISM band
  • Modulation: GFSK (Gaussian Frequency Shift Keying)
  • Transmitting power: Up to 4dBm (class 2)
  • Sensitivity to -84dBm (at 0.1% BER)
  • Speed:
    • Asynchronous (max): 2.1Mbps / 160kbps
    • Synchronous (max): 1Mbps / 1Mbps
  • Voltage: 3.3V - 6V (I/O 3.3V)
  • Current: 8mA (connected) / 35mA (pairing)
  • Dimensions: 13mm x 27mm x 2mm
Qty
Amount in stock: 7
