3x4 Membrane matrix keypad panel
3x4 Membrane matrix keypad panel
3x4 Membrane matrix keypad panel
3x4 Membrane matrix keypad panel
3x4 Membrane matrix keypad panel
3x4 Membrane matrix keypad panel

3x4 Membrane matrix keypad panel

Product Code: 1000000610

€ 1.75
(Ex Tax: € 1.45)

5 or more € 1.60
10 or more € 1.22

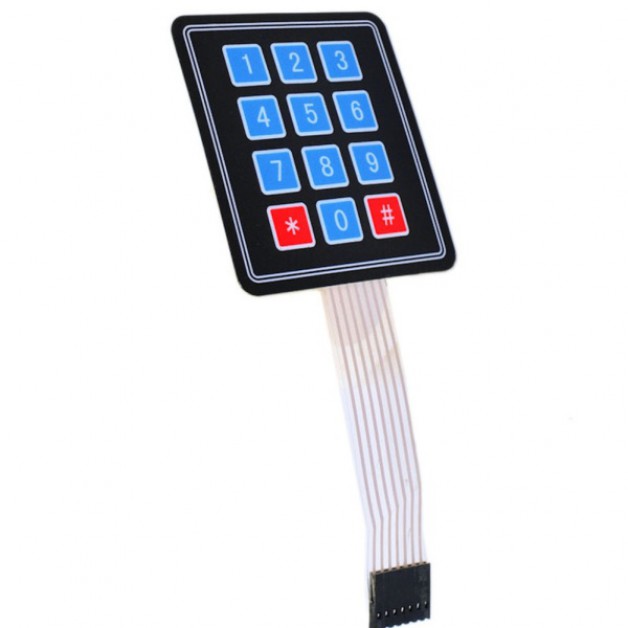

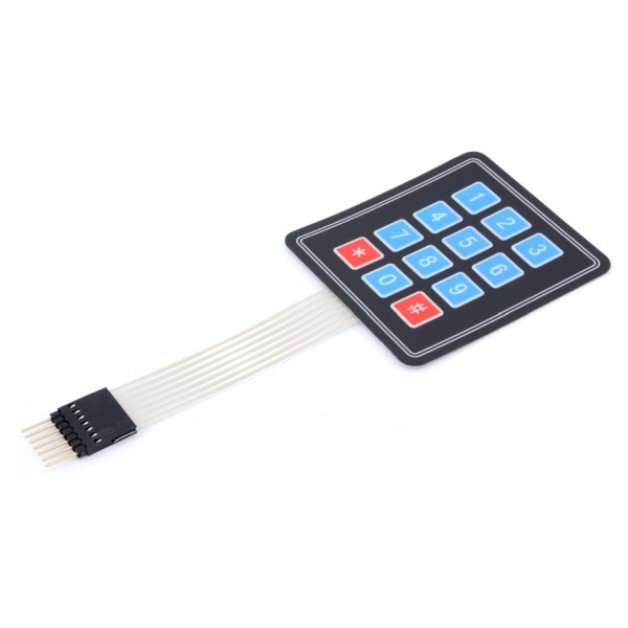

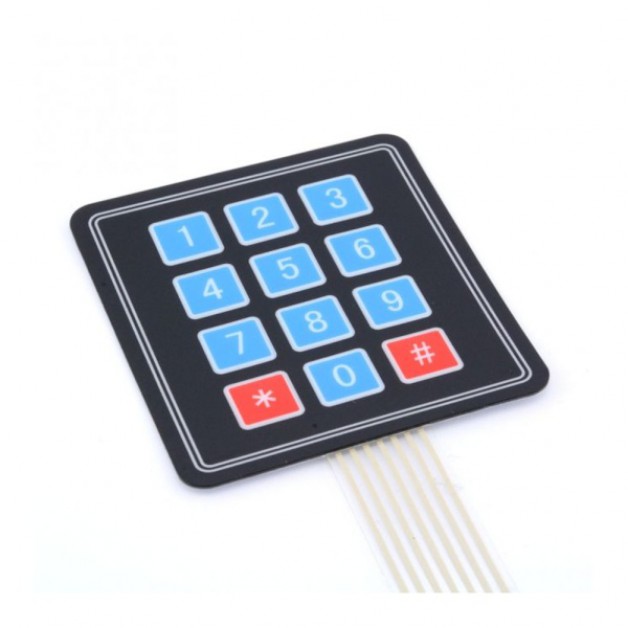

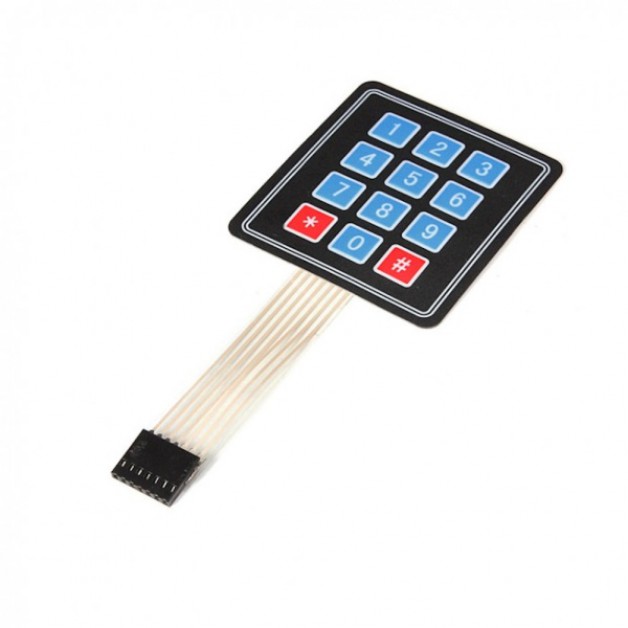

3x4 keypad panel.

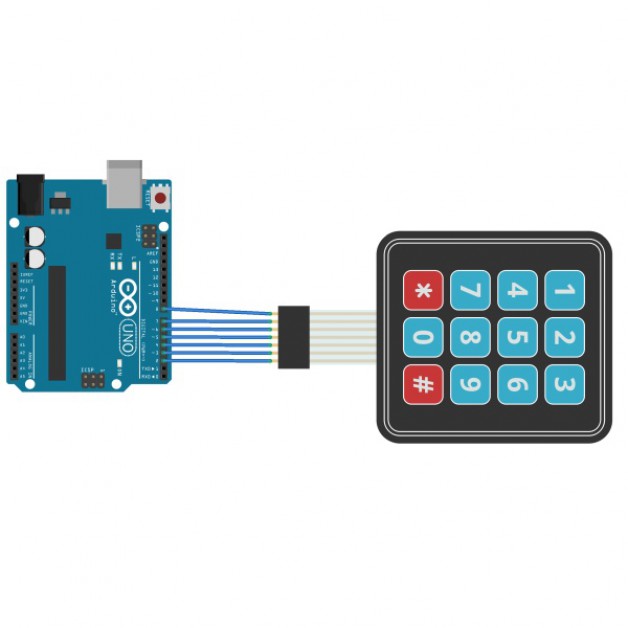

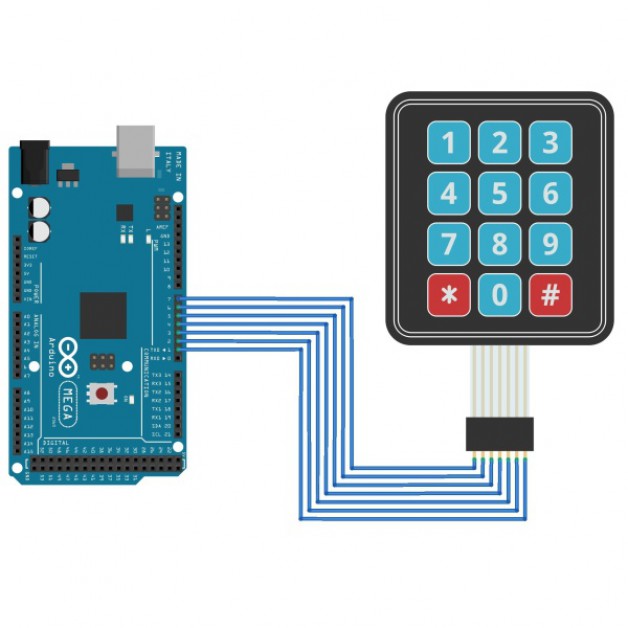

Uses (only) 7 wires by means of A matrix connection.

Technical Specifications:
  • Contact resistance: 500 Ohm
  • Insulation resistance: 100M Ohm
  • Bounce time: 1 ms
  • Pressure knob: 150N - 200N
  • Operating temperature (max): 60 ° C
  • Dimensions: Approx. 75mm x 68mm x 1mm
  • Weight: about 7 grams
Qty
Amount in stock: 18
