Arduino Mega 2560 Pro
Product Code: 1000000749€ 20.95
(Ex Tax: € 17.31)

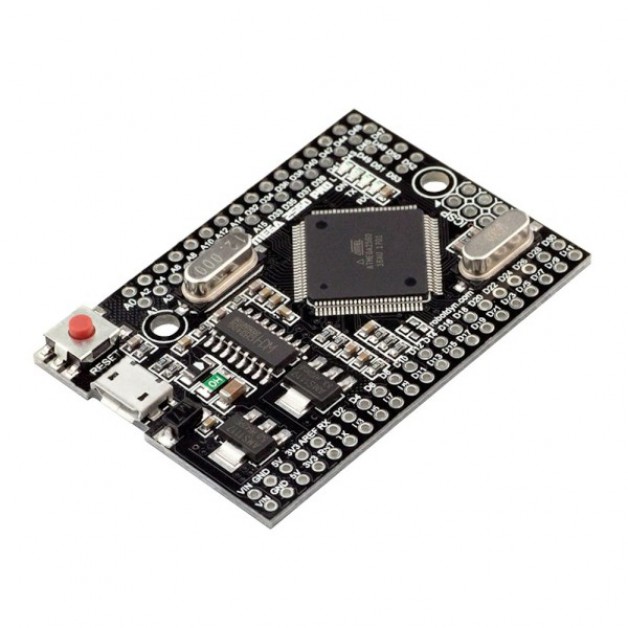

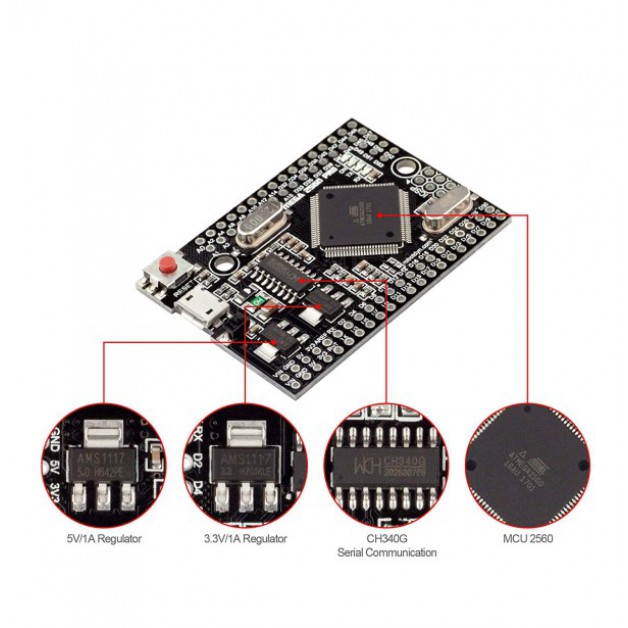

The Mega Pro Embedded CH340G / ATmega2560 is based on the ATmega2560 microcontroller and the USB-UART adapter CH340.
This board uses an original ATmega2560 chip and is therefore 100% compatible with the well-known Arduino Mega 2560.
The board has a very compact design (only 38x55mm), and is therefore extremely suitable for projects where the versatility of the ATmega2560 is desired but limited space is available.
The board has a Micro USB connection with which you can connect the microcontroller to the computer.
This board can be powered directly via the Micro USB connector or via the corresponding contact on the board (Vin).
The onboard voltage regulator makes it possible to use up to 18V as the input voltage; however we recommend using voltages up to approx. 9V to prevent excessive heat.
Technical Specifications:
- Microcontroller: ATmega 2560
- Operating voltage: 5V
- Operating voltage (max): 18 Volts
- Digital I/O Pins 54 (of which there are 15 possible provide PWM output)
- Analog Input Pins: 16
- DC amperage per I/O Pin 40 mA
- DC amperage for 3.3V Pin 50 mA
- Flash Memory: 256 KB
- RAM: 8 KB
- EEPROM: 4 KB
- Clock Speed: 16 MHz

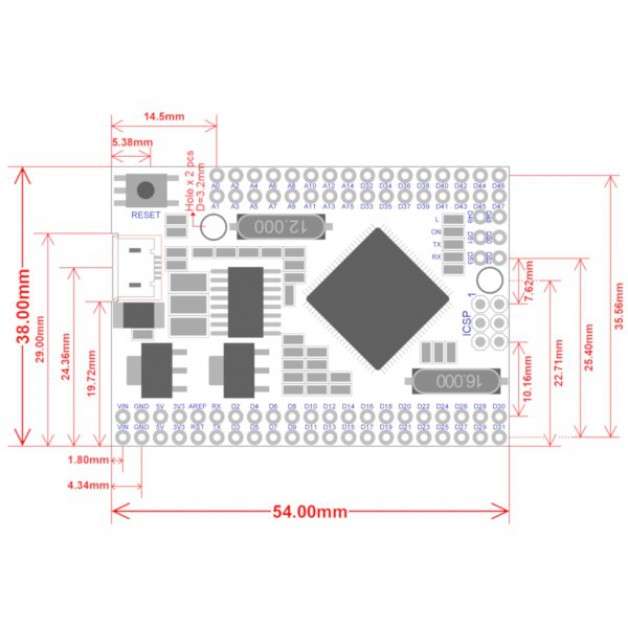

- Dimensions: 55x38mm (LxW)
In case you need the driver for this Arduino board, you can download it here.
