NodeMCU
NodeMCU
NodeMCU
NodeMCU

NodeMCU

Product Code: 1000000598

€ 7.95
(Ex Tax: € 6.57)

5 or more € 7.49

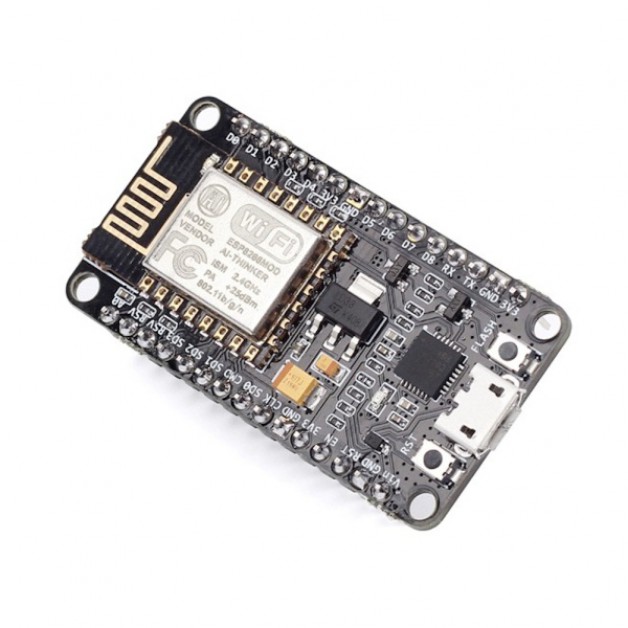

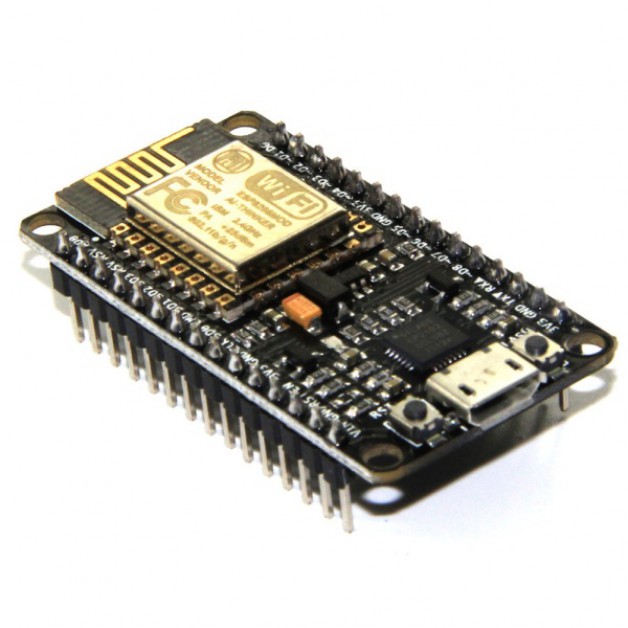

The NodeMcu is an open-source plate with built bold ESP 12E WIFI module.
This board is much faster and stronger than the well-known Arduino's.
With 512kb of memory and a processor running at 40Mhz there isn't a shortage of resources.
This board is ideal to start IoT (Internet of Things) applications.
Programming the NodeMcu works slightly differently as you might be used; with an API resembling NodeJS,
this module receives the commands through the LUA scripts uploaded.

To save costs, this board uses the CH340G chip instead of the CP2102.

Technical Specifications:
  • Wireless: 802.11 b/g/n
  • Supports STA / AP / STA + AP / UART / GPIO Data Communications / OTA (remote firmware upgrade) / Smart Link Networking
  • Built-in TCP / IP protocol - stack to support multiple TCP Client connections (MAX 5)

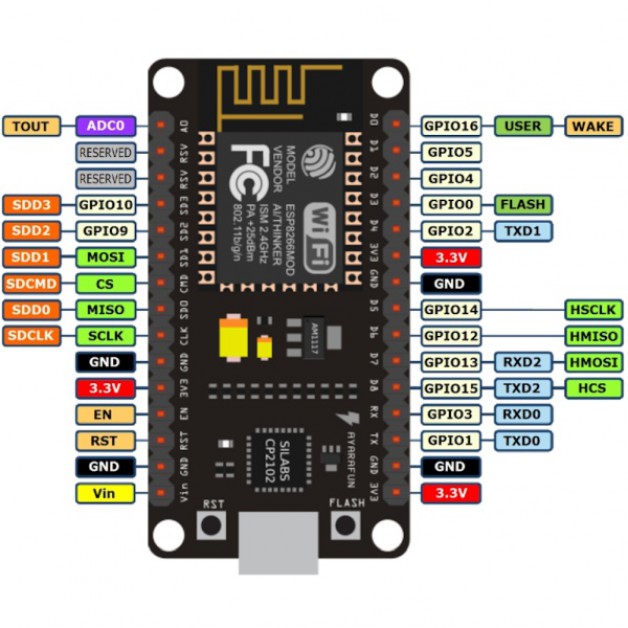

  • D0 ~ D8, SD1 ~ SD3: used as GPIO, PWM, IIC, etc., capability port driver 15mA
  • Supply Voltage: by means of micro USB -> 4.5V ~ 9V (10V max)
  • Supply Current: approximately 70mA (200mA max)
  • Standby current: <200uA
  • Transfer Speed: 110-460800 bps
  • Dimensions: 31mm x 57mm x 5mm

In case you need the driver for this Arduino board, you can download it here.
Qty
Amount in stock: 10
