Nema23 Stepper Motor (1.8 degrees | 18.9 kg/cm)
Product Code:1000000719 € 44.95
(Ex Tax:€ 37.15)
3 or more € 42.95
5 or more € 39.95
10 or more € 37.95

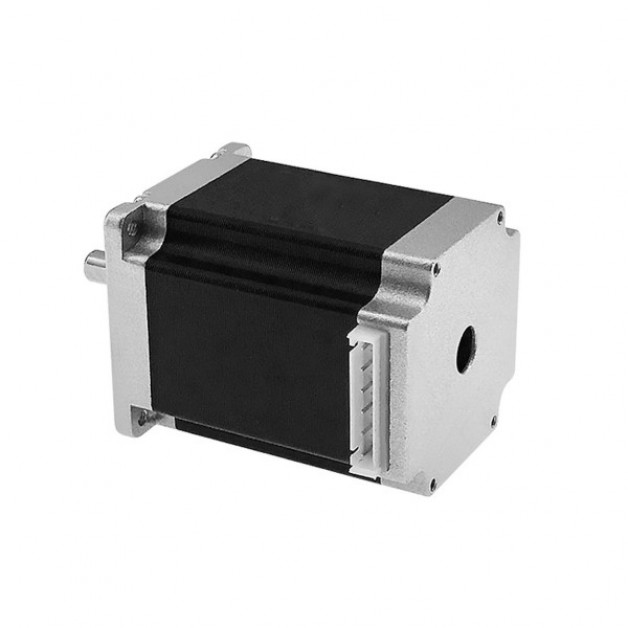

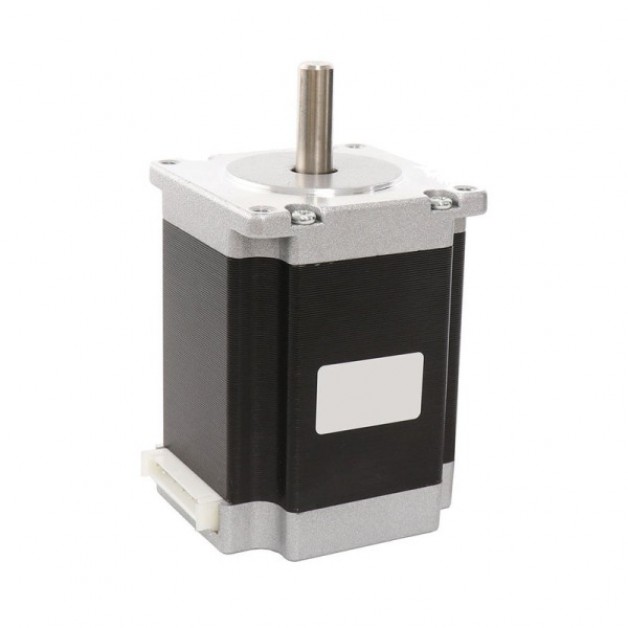

This bipolar Nema 23 stepper motor is ideally suited for CNC applications such as 3D printing and milling / laser engraving machines.
This engine can move in 1.8 degrees increments, the shaft of this engine is 6.35 mm thick and 22 mm long.
The engine further has a holding torque of no less than 18.9 kg per centimeter.
With a stepper motor driver like the Nema17 / Nema23 stepper driver, this engine is very easy to use and can be controlled up to 1/32 microstepping.
Black-green and red-blue are the two coil pairs to be connected.
Technical Specifications:
This engine can move in 1.8 degrees increments, the shaft of this engine is 6.35 mm thick and 22 mm long.
The engine further has a holding torque of no less than 18.9 kg per centimeter.
With a stepper motor driver like the Nema17 / Nema23 stepper driver, this engine is very easy to use and can be controlled up to 1/32 microstepping.
Black-green and red-blue are the two coil pairs to be connected.
Technical Specifications:
- Length: 76 mm
- Length as: 22 mm
- Diameter axis: 6.35 mm
- Hold coupling: 18.9 kg-cm
- Number of threads: 4
- Cable Length: Approx. 30cm
- Step angle: 1.8°
- Weight: approx. 1000 grams (1 kg)
- Rated current: 2.8 A
- Type: 23HS7628
Qty
Amount in stock: 4
