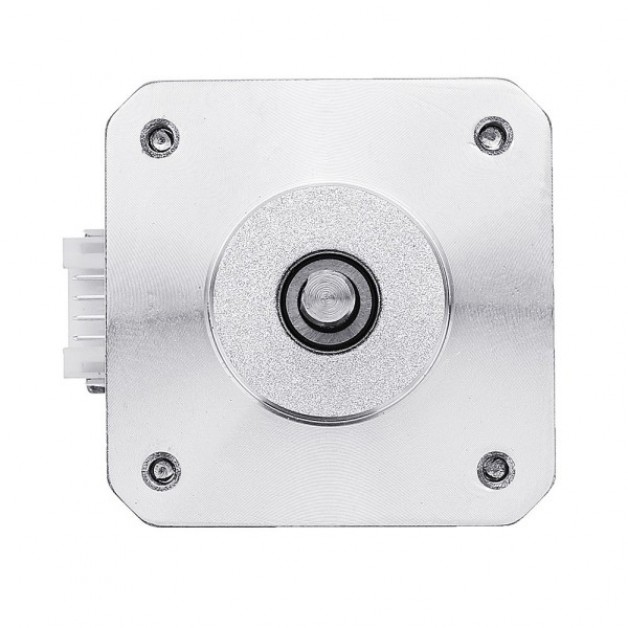

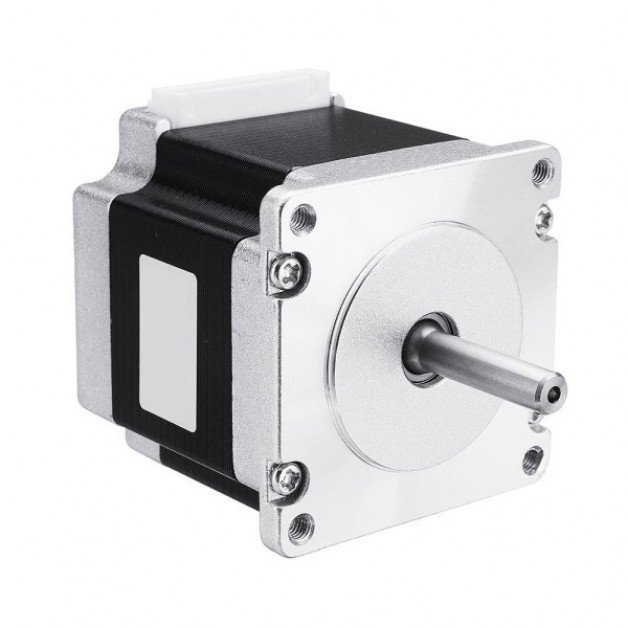

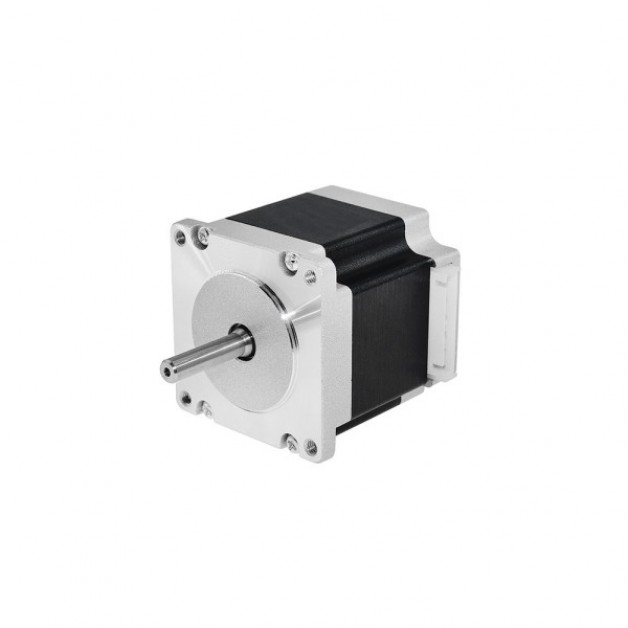

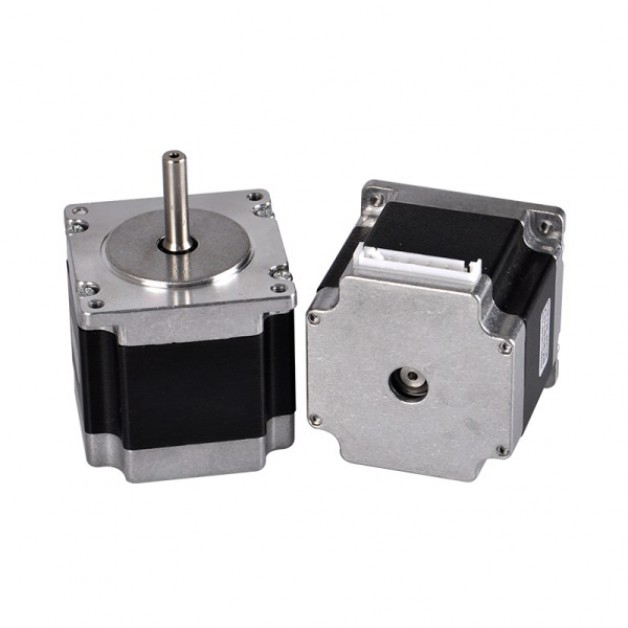

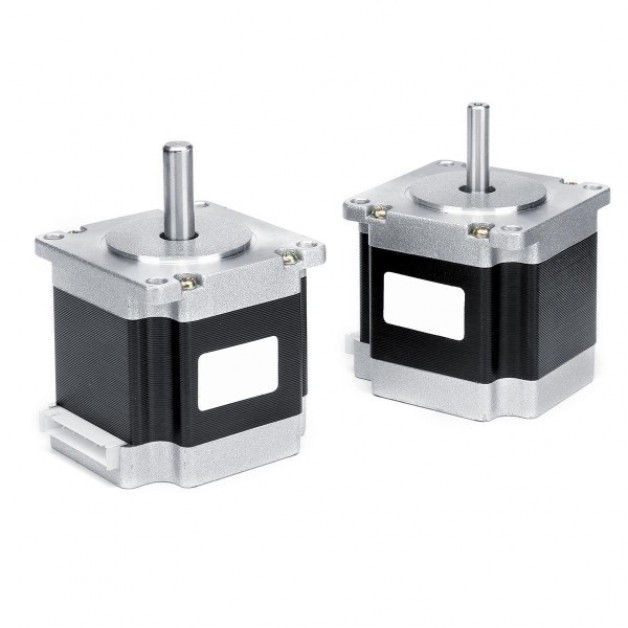

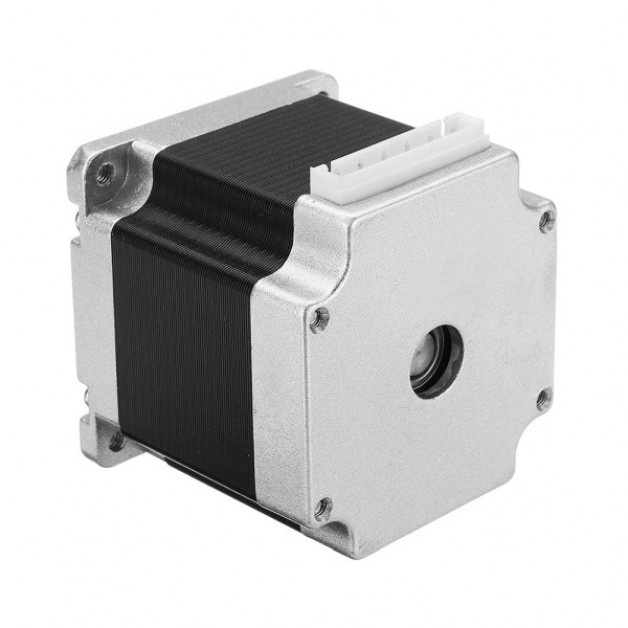

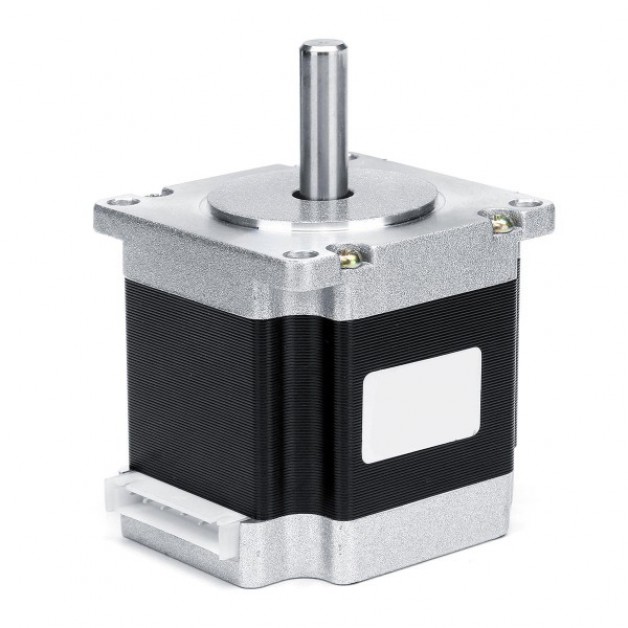

Nema23 Stepper Motor (1.8 degrees | 12.6 kg/cm)
Product Code:1000000720 € 32.49
(Ex Tax:€ 26.85)
3 or more € 30.95
5 or more € 29.95
10 or more € 27.95
This bipolar Nema 23 stepper motor is ideally suited for CNC applications such as 3D printing and milling / laser engraving machines.
This engine can move in 1.8 degrees increments, the shaft of this engine is 6.35 mm thick and 22 mm long.
The engine further has a holding torque of no less than 12.6 kg per centimeter.
With a stepper motor driver like the Nema17 / Nema23 stepper driver, this engine is very easy to use and can be controlled up to 1/32 microstepping.
Black-green and red-blue are the two coil pairs to be connected.
Technical Specifications:
This engine can move in 1.8 degrees increments, the shaft of this engine is 6.35 mm thick and 22 mm long.
The engine further has a holding torque of no less than 12.6 kg per centimeter.
With a stepper motor driver like the Nema17 / Nema23 stepper driver, this engine is very easy to use and can be controlled up to 1/32 microstepping.
Black-green and red-blue are the two coil pairs to be connected.
Technical Specifications:
- Length: 56 mm
- Length as: 22 mm
- Diameter axis: 6.35 mm
- Hold coupling: 12.6 kg-cm
- Number of threads: 4
- Cable Length: Approx. 30cm
- Step angle: 1.8°
- Weight: approx. 700 grams
- Rated current: 2.8 A
- Type: 23HS5628
