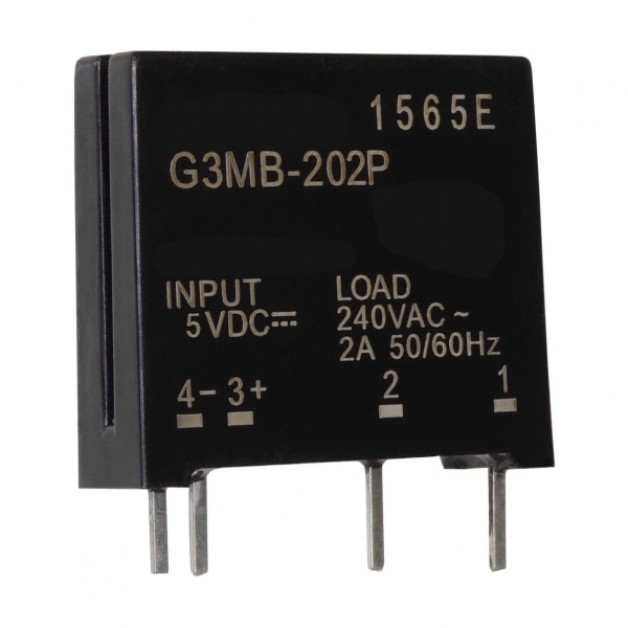

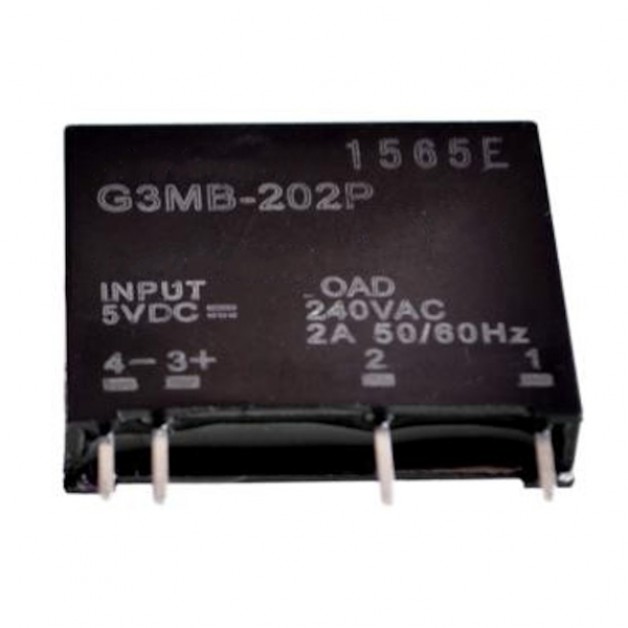

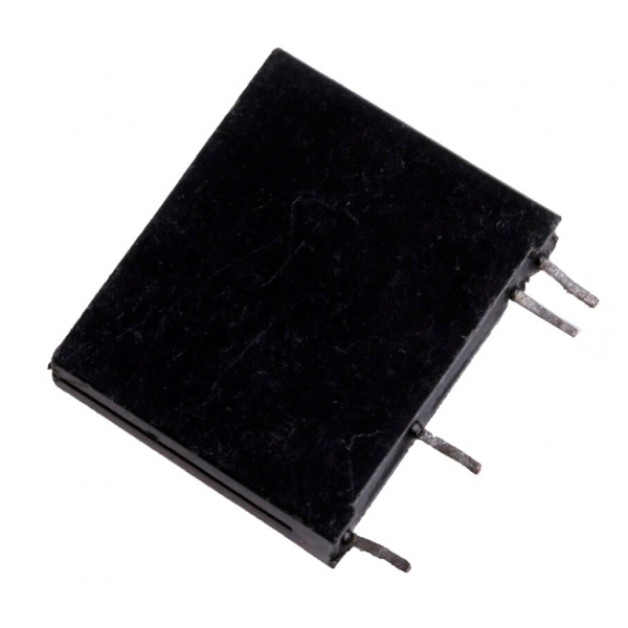

SSR (Solid State Relay) 5V (G3MB-202P)
Product Code: 1000000829€ 2.49
(Ex Tax: € 2.06)
5 or more € 2.45
10 or more € 2.39
25 or more € 2.35
50 or more € 2.29
100 or more € 2.25
500 or more € 2.19
Omron solid state relays.
With this relay you can switch an AC voltage of 100 volts to 240 volts with a maximum current of 2 amps using a DC control voltage of 2.5 volts to 5 volts.
Easy to control using, for example, an Arduino or Raspberry Pi.
Technical specifications:
- Type: G3MB-202P
- Control voltage: 5 VDC
- Relay on at: 2.5 - 5V
- Switching voltage: 100 - 240 VAC
- Current: 2A (max)
- Number of outputs: 1 phase
- Dimensions: 25mm x 20mm x 5mm (L x H x D)
- Weight: approx. 13 grams
Qty
Amount in stock: 20
