Raspberry Pi Pico (RP2040)
Raspberry Pi Pico (RP2040)
Raspberry Pi Pico (RP2040)
Raspberry Pi Pico (RP2040)
Raspberry Pi Pico (RP2040)
Raspberry Pi Pico (RP2040)

Raspberry Pi Pico (RP2040)

Product Code: 1000000863
€ 7.49
(Ex Tax: € 6.19)

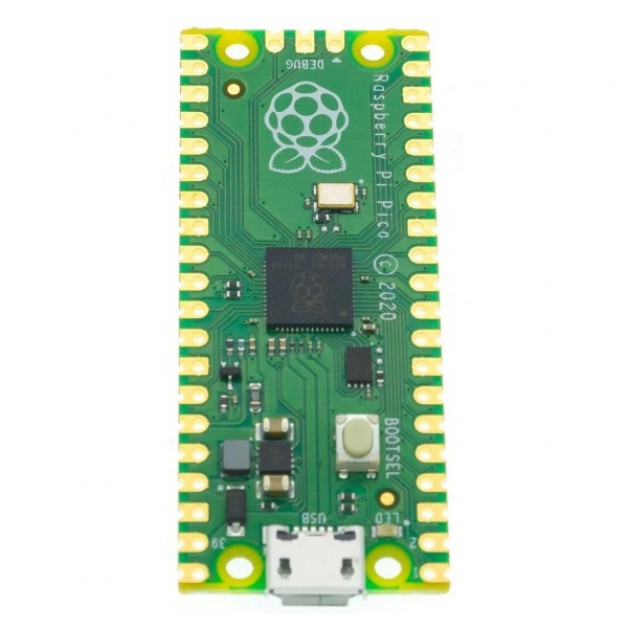

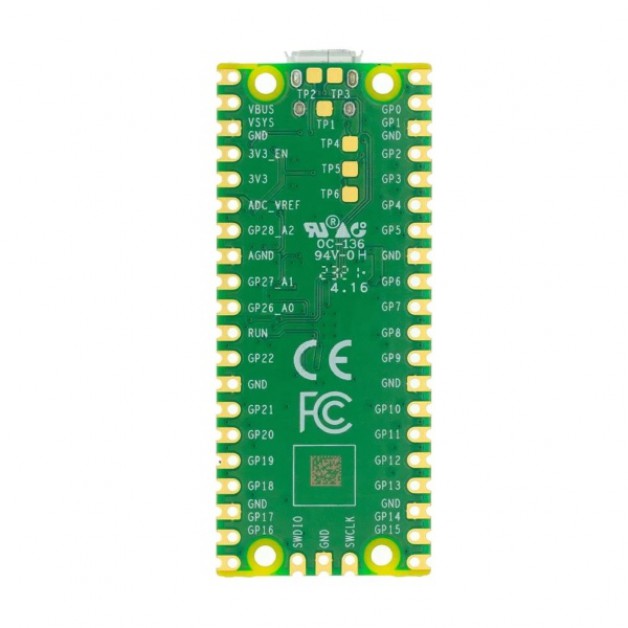

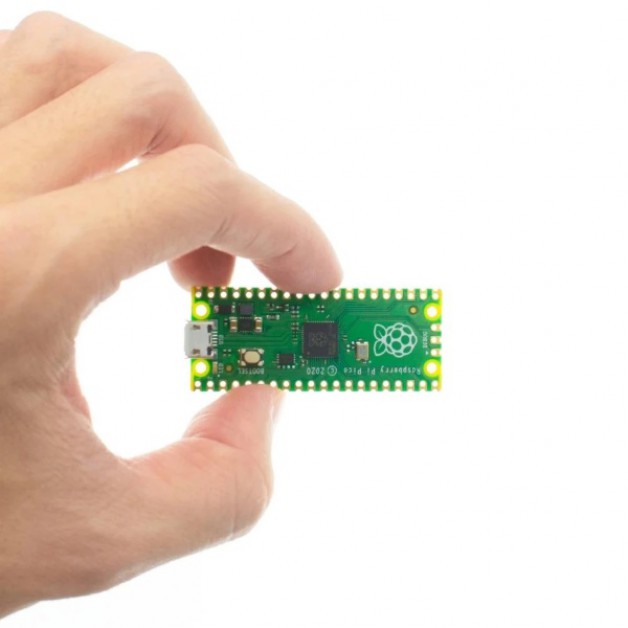

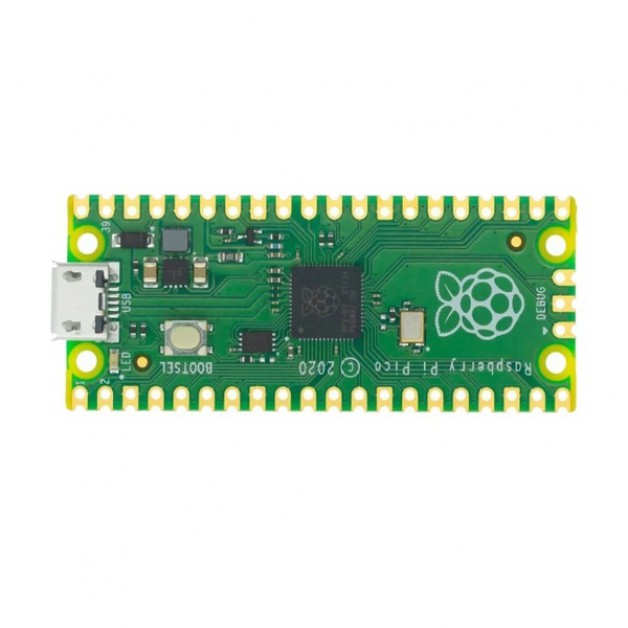

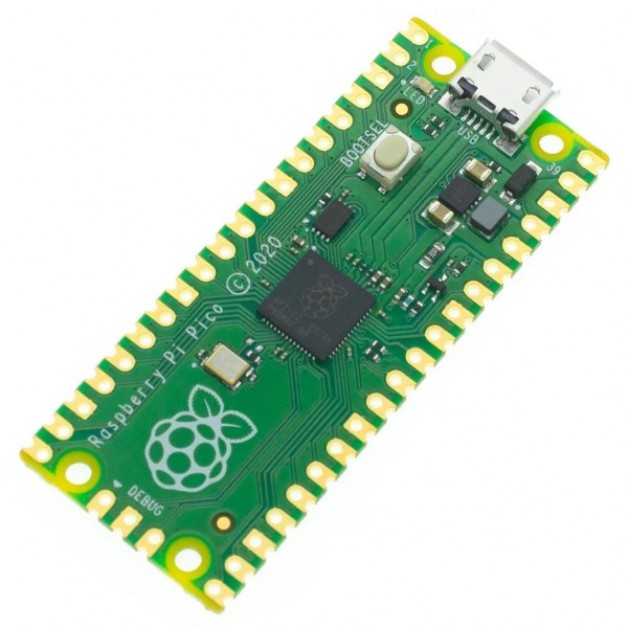

This Raspberry Pi Pico is equipped with an RP2040 chip, which has 2 cores with a clock speed of 133Mhz and an on-chip memory of 264kb.
In addition, 2MB of flash memory is available.

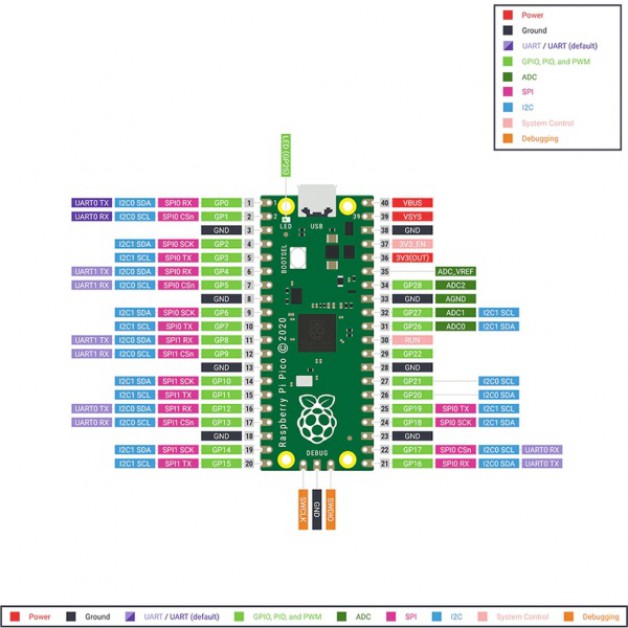

The Raspberry Pi Pico has 30 GPIO pins. 4 of these pins are analog inputs.
Furthermore, this board has a DMA controller, 2 SPI controllers, 2 uarts, 2 I2C controllers and no less than 16 PWM channels!

This board requires a supply voltage of between 1.8V and 5.5V.

The USB connection of the Raspberry Pi Pico is a micro USB 1.1 connection.
In addition to programming the Pico, this can also be used as a USB host and as a USB device.

PAY ATTENTION!!!
This is not a 'regular' Raspberri Pi.
You cannot run Linux on this board, this board is meant to run Micropython!

This board is a micro controller and not a micro computer.
Raspberry Pi Zero is a micro computer, and the Raspberry Pi Pico is a micro controller.

Technical specifications:
  • Brand: Raspberry Pi
  • Type: Micro controller RP2040
  • Processor: Dual core Arm Cortex M0+
  • Flexible Clock Speed: Yes
  • max. Clock Speed: 133MHz
  • Memory: 264KB SRAM & 2MB Flash
  • USB connection: 1.1
  • USB device option: Yes
  • USB host capability: Yes
  • Number of GPIOs: 26
  • SPI: 2x
  • I2C: 2x
  • UART: 2x
  • ADC: 3x (12 bit)
  • PWM: 16x

Additional options available
:
  • Built-in temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8 Programmable I/Os for state machines custom peripherals


For detailed information you can consult the datasheet here.
