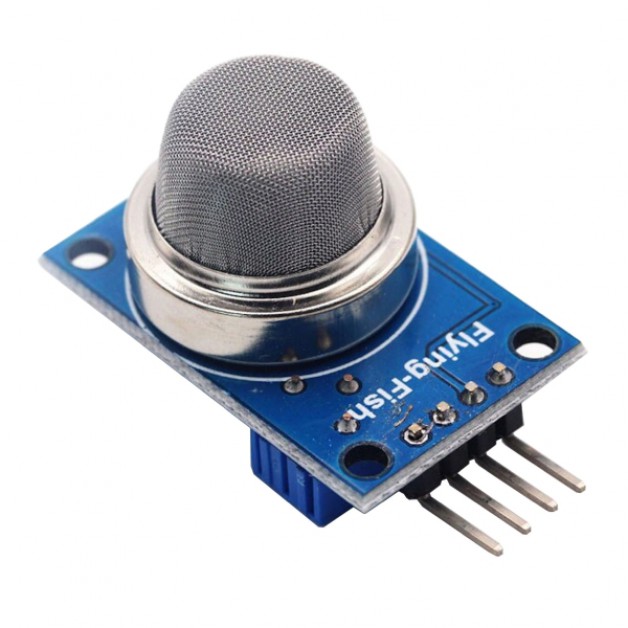

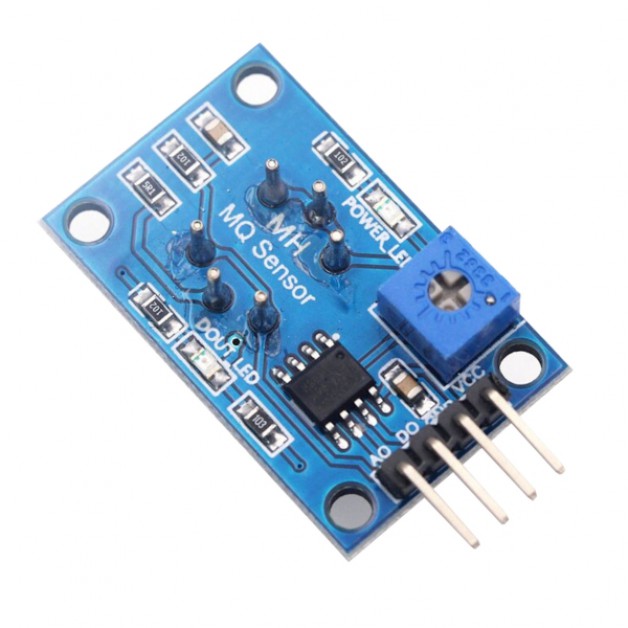

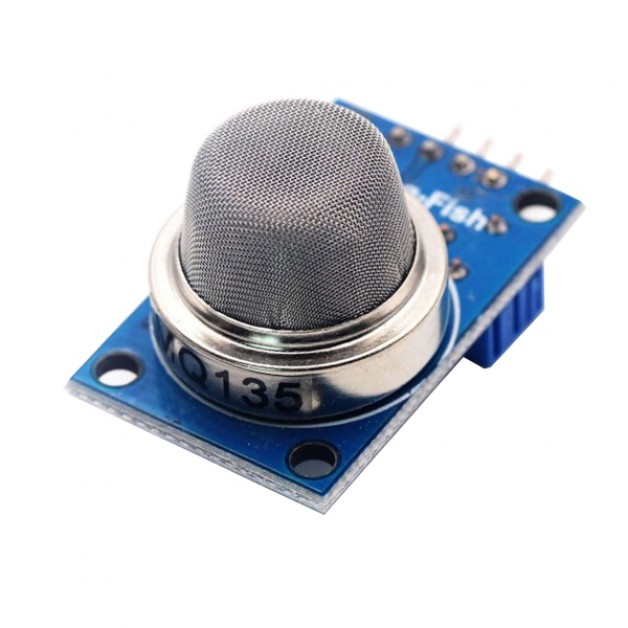

Air quality sensor (MQ-135)
Air quality sensor (MQ-135)
Air quality sensor (MQ-135)

Air quality sensor (MQ-135)

Product Code: 1000000897
€ 3.29
(Ex Tax: € 2.72)

5 or more € 3.19
10 or more € 3.09
25 or more € 2.99

This sensor detects a number of gases so that the air quality in general can be measured.
The MQ-135 can record gas concentrations from 300 to 5000ppm.
The sensor has both an analog and a digital output.
The digital output gives a high signal when the gas concentration exceeds a certain threshold value (adjustable by means of the potentiometer).

Technical specifications:
  • Type: MQ-135
  • Supply voltage: 5V DC
  • Digital output: 5V (high)
  • Analog output: 0V - 5V
  • Dimensions (without headers): 32.5mm x 20.5mm x 22mm (L x W x H)

Detectable gases:
  • Carbon Dioxide
  • Ammonia
  • Nitrogen Oxides
  • Benzene
  • Petrol
  • Alcohol
  • Smoke

  • VCC - Supply voltage (5V)
  • GND - Earth/min/ground (0V)
  • A0 - Analog output
  • D0 - Digital output
Amount in stock: 10
