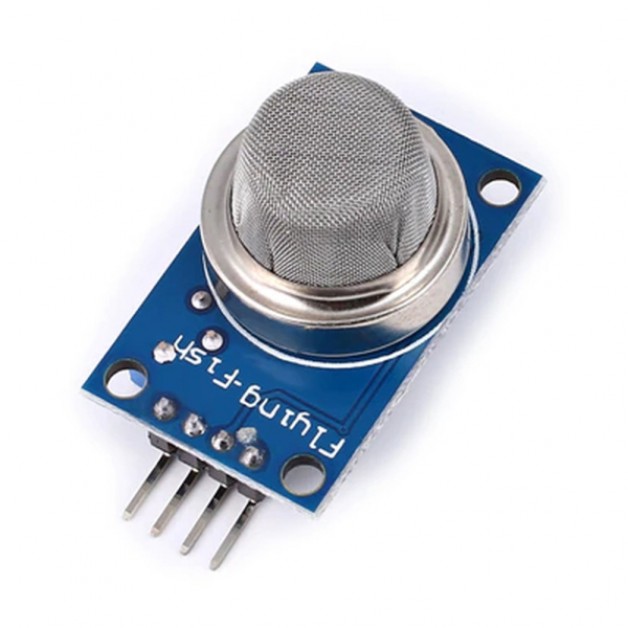

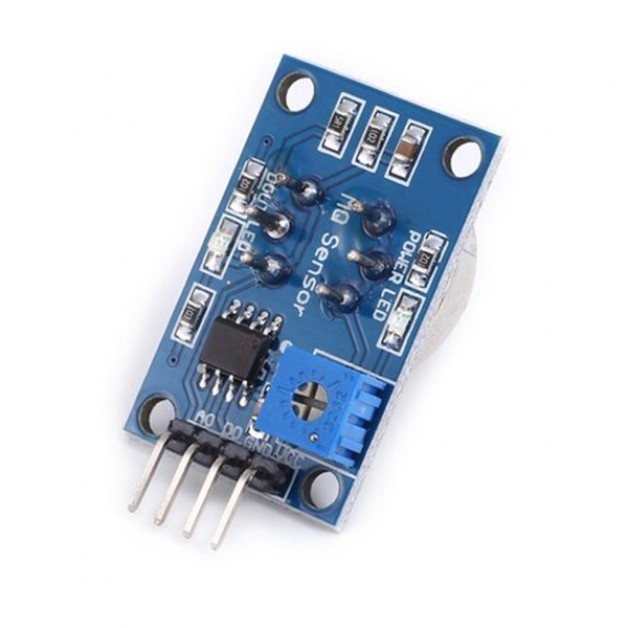

Smoke / Gas sensor (Air Quality Module Analog)
Product Code: 1000000894€ 3.19
(Ex Tax: € 2.64)
5 or more € 3.09
10 or more € 2.99
25 or more € 2.89
This sensor detects the presence of smoke, LPG, butane, propane, methane, alcohol and hydrogen.
The threshold value of this sensor is adjustable by means of the potentiometer.
Technical specifications:
- Measuring range: 100 - 10.000 ppm
- Supply voltage: 5 Volt
- Dimensions: 32x20x22mm (L x W x H)
- Weight: approx. 6 grams

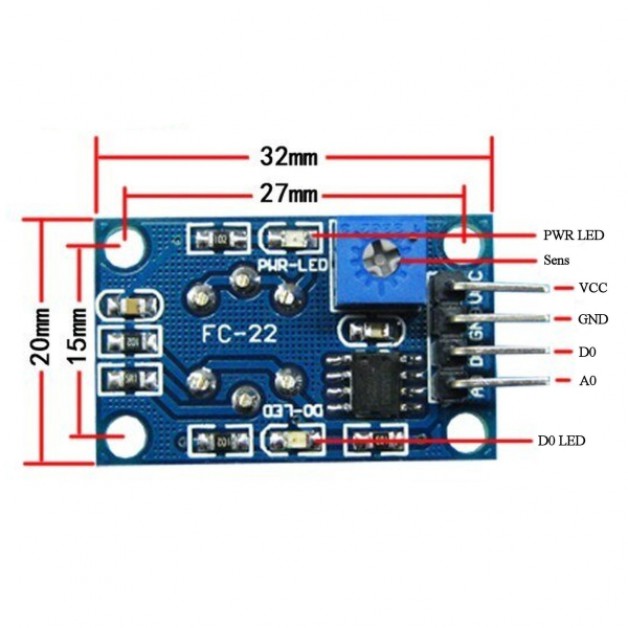

pinout:
- VCC: 5 Volt
- GND: 0 Volt / Earth / Min
- A0: Analog output
- D0: Digital output
Qty
Amount in stock: 10
