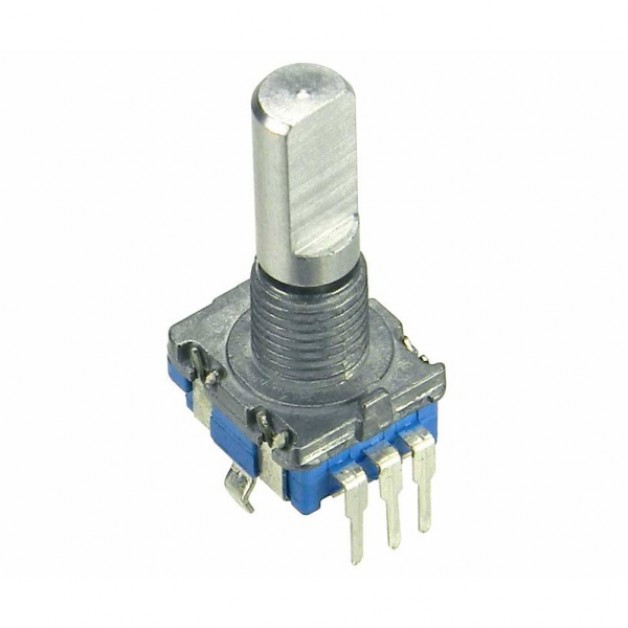

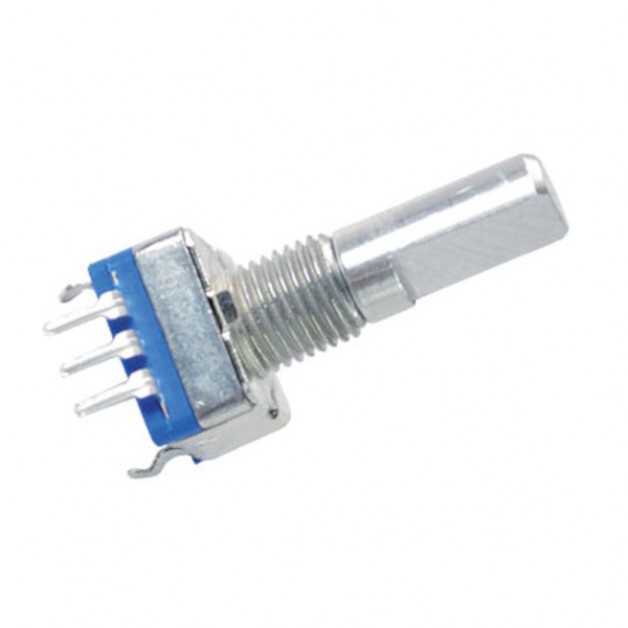

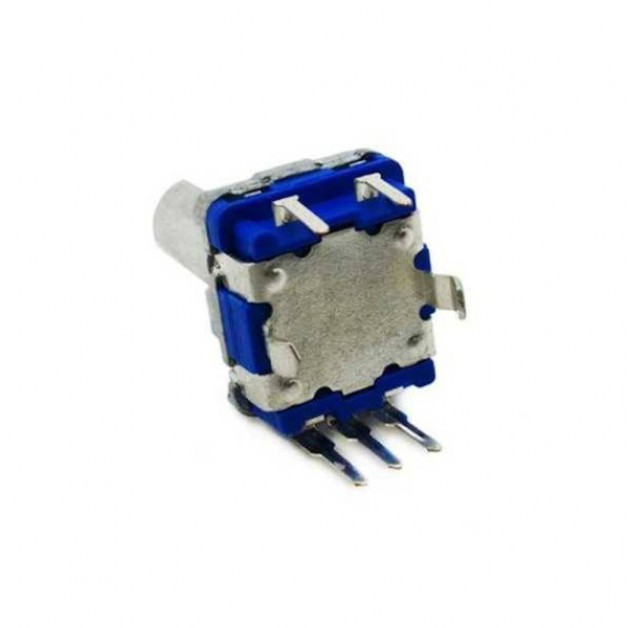

Rotary Encoder (20mm) - Flattened Shaft

Rotary encoder (EC11) with 20 pulses per 360 degrees.
This rotary encoder also contains a switch so that the button / shaft is not only rotatable, but can also be pressed.
The length of the shaft is 20mm.

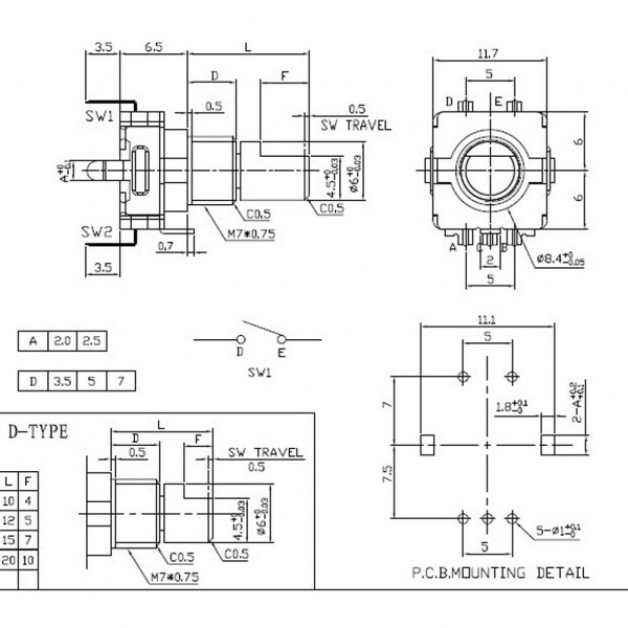

Technical Specifications:

• Rotary Shaft Length: Approx. 20mm (15mm outer size)
• Shaft Diameter: Approx. 6mm
• Size: Approx. 25mm x 15mm x 20mm
• Positions: 20
• Pulses per rotation: 20
• Output: 2-bit (gray code)
• Closed Circuit Resistance: 3 ohms max
• Max. rating: 10 mA at 5 VDC.
• Operating Temperature Range: -30 to 70 degrees celsius.
• Storage Temperature Range: -40 to 85 degrees celsius.
• Rotational Life: 30.000 cycles (minimum)
• Switch Life: 20.000 cycles (minimum)
