SSR (Solid State Relay) DC / AC 40A
Product Code: 1000000820€ 7.49
(Ex Tax: € 6.19)
5 or more € 6.99
10 or more € 6.49
25 or more € 5.99

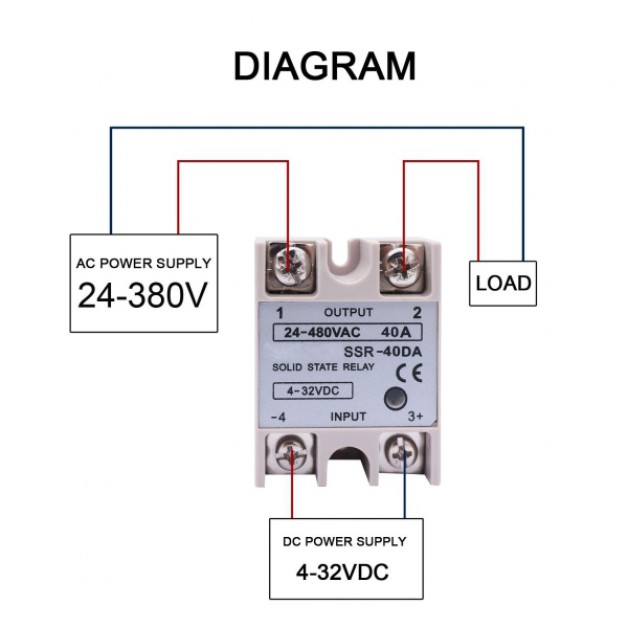

With this relay you can switch an AC voltage of 24 volts to 380 volts with a maximum current of 40 amps using a DC control voltage variable from 3 volts to 32 volts!
Easy to control using, for example, an Arduino or Raspberry Pi.
Technische Specificaties:
- Type: SSR-40 DA
- Control voltage: 3VDC - 32VDC
- Relay on at: 3V
- Switching voltage: 24VAC - 380VAC
- Current: 40A (max)
- Number of outputs: 1 phase
- Dimensions: 60mm x 45mm x 23mm (L x H x D)
Qty
Amount in stock: 13
