Nextion 3.2 Inch Touchscreen
Product Code: 1000000821€ 29.95
(Ex Tax: € 24.75)
2 or more € 28.95
5 or more € 27.49
10 or more € 25.99
Complete HMI (Human Machine Interface) display with touchscreen.
Nextion is an HMI solution that provides a control and visualization interface between a human and machine.
It is the best solution to replace the traditional LCD and LED Nixie tube.
The Nextion TFT board only uses one serial port to communicate, which saves a lot of hassle with cabling.
In addition, it is easy to adapt the Nextion family HMI to existing projects.
Users only need to provide a UART.

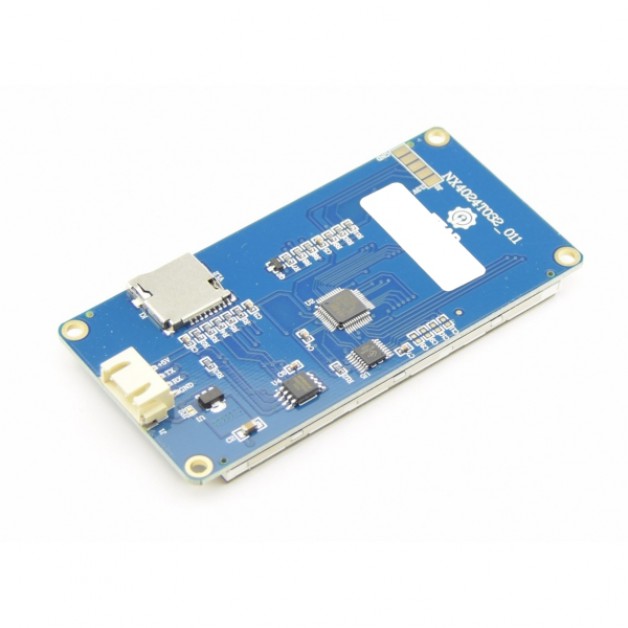

A handy micro SD card slot is available to provide this Nextion with new firmware.
Technical specifications:
- Brand: Nextion
- Series: NX4024T032
- Type: TFT Touchscreen
- Resolution: 400 x 240 pixels
- RGB: Yes (65,000 true-to-life colors)
- Interface: 4 pin for each TTL serial host
- Memory: 4M Flash and 2KB RAM
- Adjustable brightness: Yes
- Screen brightness: 180 cd/m2
- Supply voltage: 4.75V - 7V (5V typical)
- Supply current (max): 85mA (at max brightness)
- Supply current (sleep): 15mA

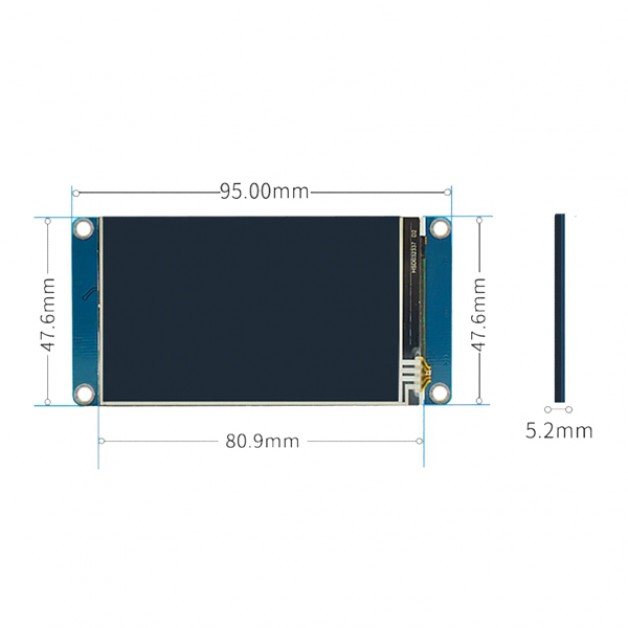

- Dimensions: 95mm x 47.6mm x 5.2mm (L x W x D)
Qty
Amount in stock: Sold Out
