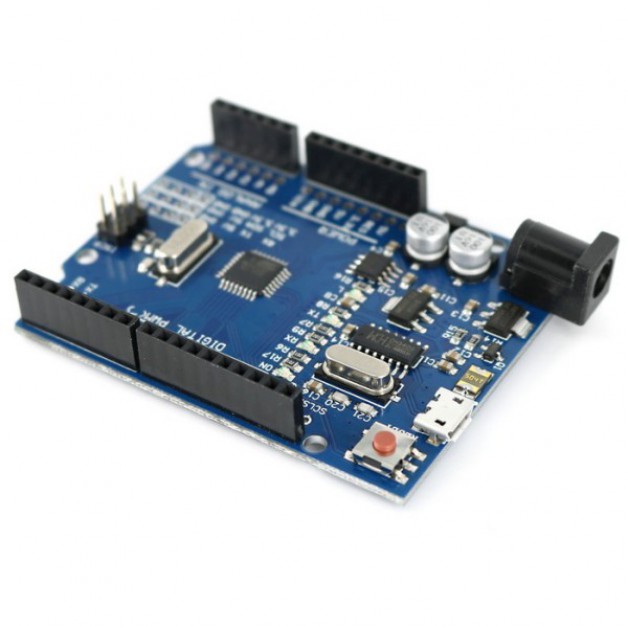

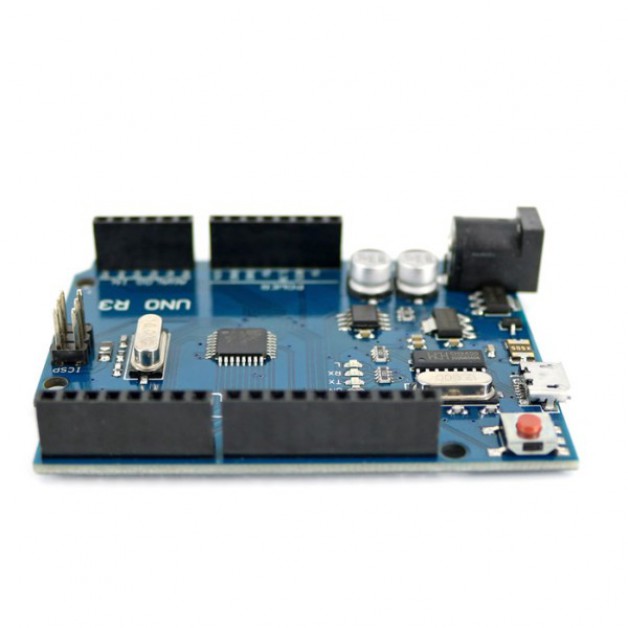

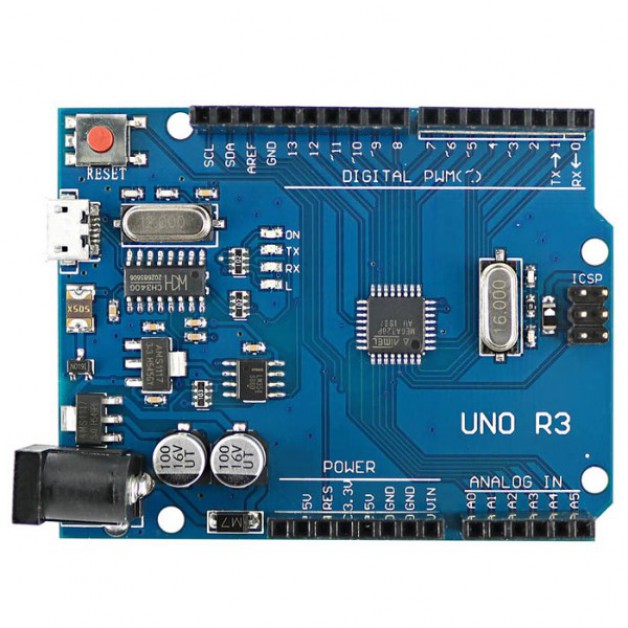

Arduino UNO R3 micro USB (Compatible)
Product Code: 1000000533EAN: 0695897510185
€ 8.95
(Ex Tax: € 7.40)
Arduino UNO R3 is the latest version and is the successor to Arduino Duemilanove.
The UNO has a USB-to-Serial Chip different than previous versions, namely the ATmega8U2 USB to TTL.
It, like its predecessors, a USB B connection and also has a bootloader that only 0.5 KB of total memory used (requires 2.0 KB). Dccduino is a company that makes Arduino clones.
Like the other clones using this Arduino design with the ATMEGA328P chip but with a
few upgrades:
Technical Specifications:
Mocht u de driver van dit Arduino bord nodig blijken te hebben dan kunt u die hier downloaden.
The UNO has a USB-to-Serial Chip different than previous versions, namely the ATmega8U2 USB to TTL.
It, like its predecessors, a USB B connection and also has a bootloader that only 0.5 KB of total memory used (requires 2.0 KB). Dccduino is a company that makes Arduino clones.
Like the other clones using this Arduino design with the ATMEGA328P chip but with a
few upgrades:
- USB interface is controlled by the more stable CH340G chip.
- Extra header options
Technical Specifications:
- Microcontroller: ATmega328P-PU
- Operating Voltage: 5 Volt
- Input Voltage(max): 20 Volt
- Digital I/O Pins: 14 (with 6 possible PWM output pins)
- Analog Input Pins: 6
- DC Current per I/O: 40 mA
- DC Current for 3.3V Pin: 50 mA
- Flash Memory: 32 KB
- SRAM: 2 KB
- EEPROM: 1 KB
- Clock Speed: 16 MHz
- USB Type: Micro USB
Mocht u de driver van dit Arduino bord nodig blijken te hebben dan kunt u die hier downloaden.
