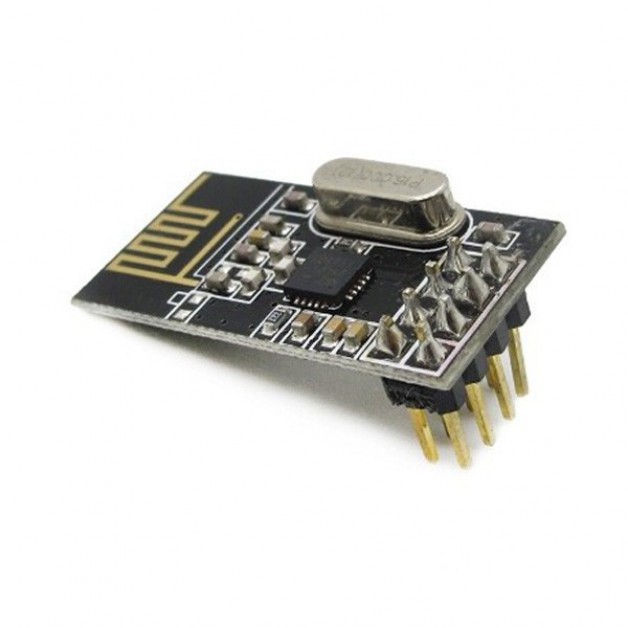

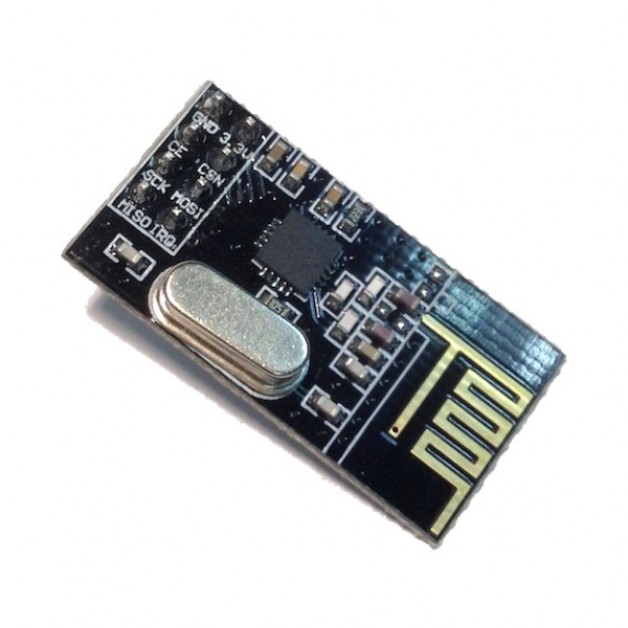

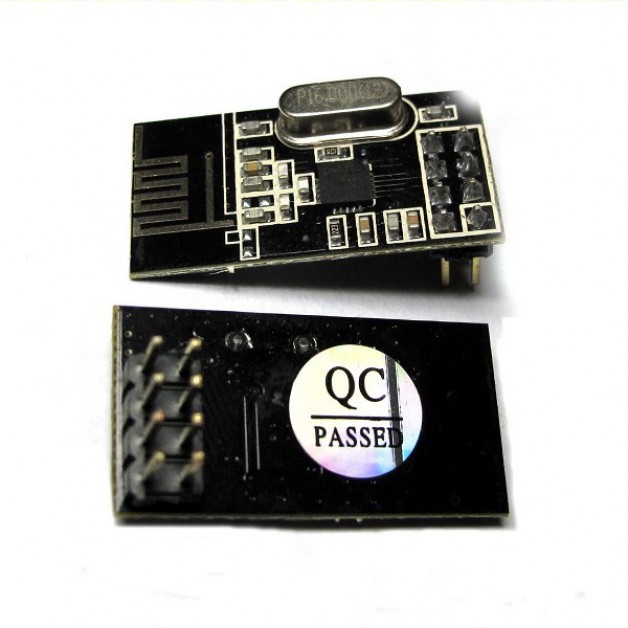

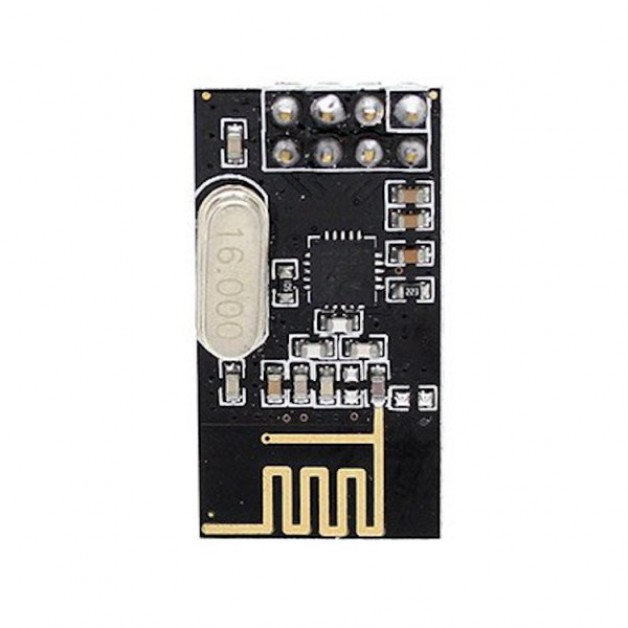

NRF24L01+ Send & Receive module
Product Code: 1000000396€ 1.49
(Ex Tax: € 1.23)
The NRF24L01 + is a 2.4GHz transceiver with a built-in hardware protocol Enhanced Shock Burst ™) designed for ultra-efficient wireless applications.
The NRF24L01 + uses the 2400 - 2.4835GHz band to communicate.
This module is to address through SPI (Serial Peripheral Interface).
SPI can also change the configuration registers of the module.
The NRF24L01 + module is the upgraded version of the NRF24L01, this module adds a "long haul" mode with 256kbps, in addition, two ground pins and two 3.3V combined.
Technical Specifications:
The NRF24L01 + uses the 2400 - 2.4835GHz band to communicate.
This module is to address through SPI (Serial Peripheral Interface).
SPI can also change the configuration registers of the module.
The NRF24L01 + module is the upgraded version of the NRF24L01, this module adds a "long haul" mode with 256kbps, in addition, two ground pins and two 3.3V combined.
Technical Specifications:
- Voltage: 1.9V ~ 3.6V
- Power Use: 13.5mA (at 2Mbps)
- Number of I/O's: 8
- I/O tolerance: 5 Volts
- Sensitivity: -85dBm (at 1 Mbps)
- Remote reception: 70 ~ 100 meters (at 256 kbps)
- Data rate: 256 kbps / 1 Mbps / 2 Mbps
- Modes: Power Down / Standby / Fashion RX / TX Fashion
Qty
Amount in stock: 26
