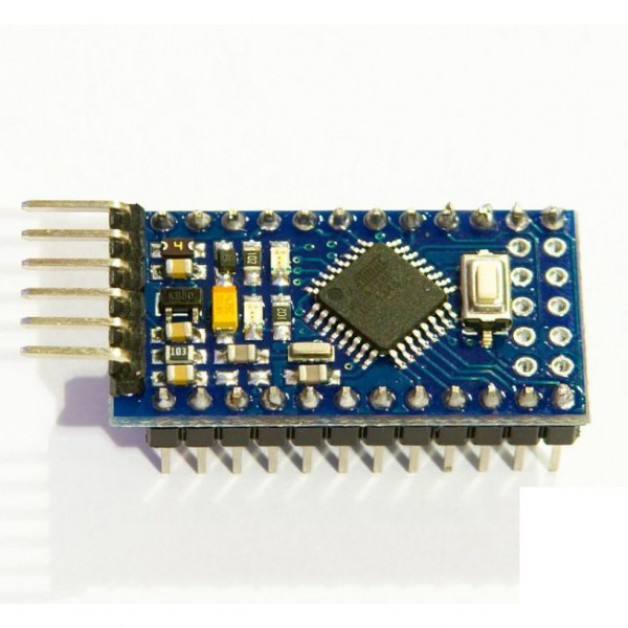

Arduino Pro Mini 5V 16MHz (new version)
Product Code: 1000000375€ 8.95
(Ex Tax: € 7.40)
The Arduino Pro Mini is designed for more experienced users who find flexibeliteit, size and cost are important.
The Arduino comes with a minimum amount of componeneten (no USB port or pin headers) to keep the price down.
This product relates to the 5 Volt 16 MHZ version (pin headers are supplied separately).
These mini pro is slightly different from the original design, the components are rearranged on the sign.
In addition, the reset button in another embodiment (which is smaller), and there are 2 analogue of pins and an additional 5V and GND pin placed behind this button.
Technical Specifications:
The Arduino comes with a minimum amount of componeneten (no USB port or pin headers) to keep the price down.
This product relates to the 5 Volt 16 MHZ version (pin headers are supplied separately).
These mini pro is slightly different from the original design, the components are rearranged on the sign.
In addition, the reset button in another embodiment (which is smaller), and there are 2 analogue of pins and an additional 5V and GND pin placed behind this button.
Technical Specifications:
- Microcontroller: ATmega328 / ATmega168
- Operating Voltage: 5 Volt
- Input Voltage(max): 20 Volt
- Digital I/O Pins: 20 (with 6 possible PWM output pins)
- Analog Input Pins: 8
- DC Current per I/O: 40 mA
- DC Current for 3.3V Pin: 50 mA
- Flash Memory: 32 KB
- SRAM: 2 KB
- EEPROM: 1 KB
- Clock Speed: 16 MHz
Qty
Amount in stock: 23
