8 Channel Logic Analyser 24MHz
Product Code: 1000000853€ 9.95
(Ex Tax: € 8.22)
This very compact 8 channel logic analyzer has been specially designed to be compatible with Saleae's software, on which analysis is possible.
This Logic Analyzer has a maximum speed of 24 MHz per channel!
The analyzer is suitable for analyzing I2C, SPI and UART communication.
Technical specifications:
- Number of digital channels: 8
- Speed: 24MHz (approx. 20ppm)
- Input voltage range: -0.5V to 5.25V
- Input Low Voltage: -0.5V to 0.8V
- Input high voltage: 2.0 V to 5.25 V
- Works with: 5V, 3.3V, 2.5V, 2.0V systems
- Input impedance: approx. 1 Mohm | 10 pF (typical)
- accuracy: approx. 42ns (at 24MHz)

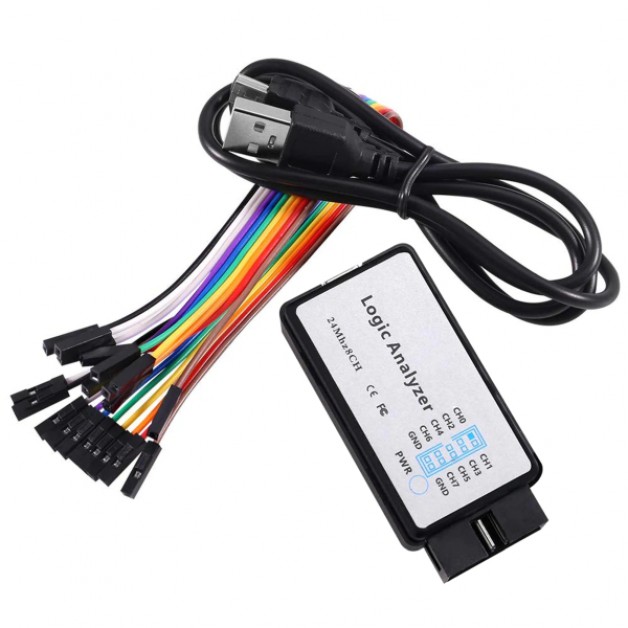

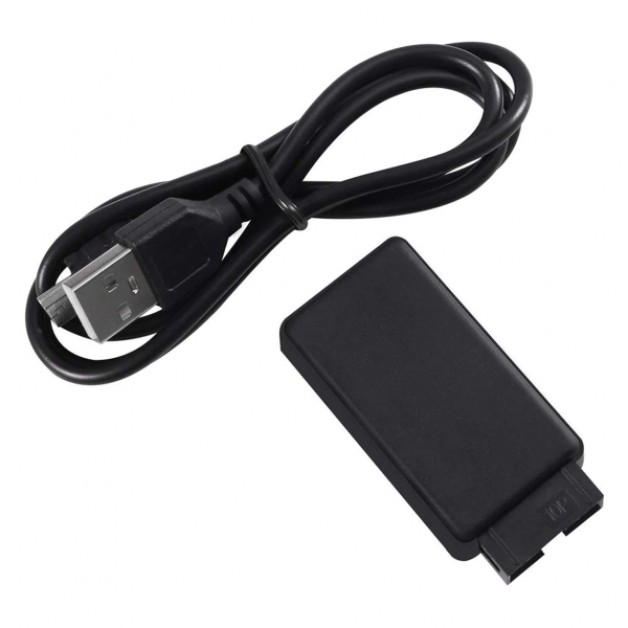

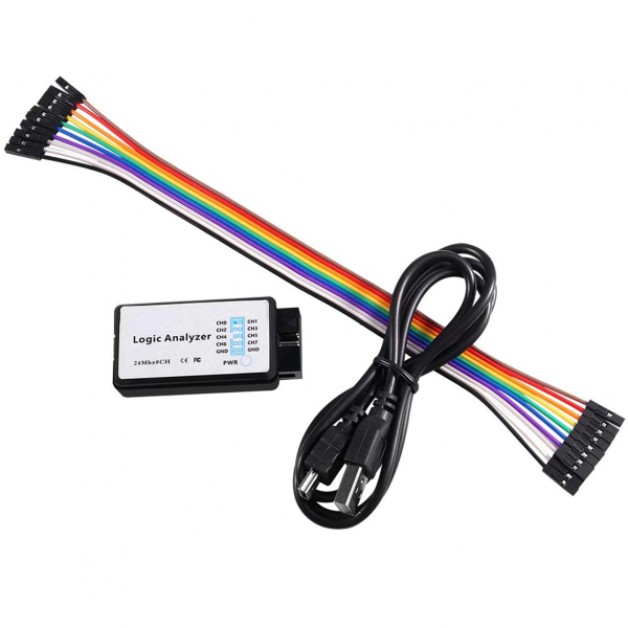

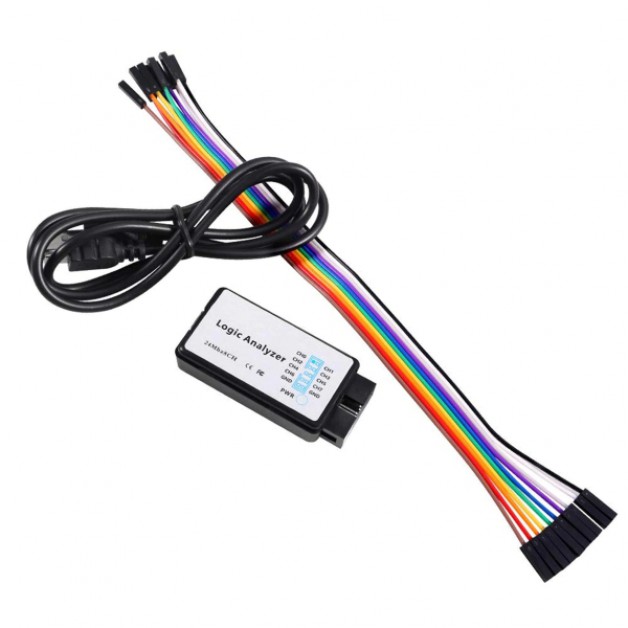

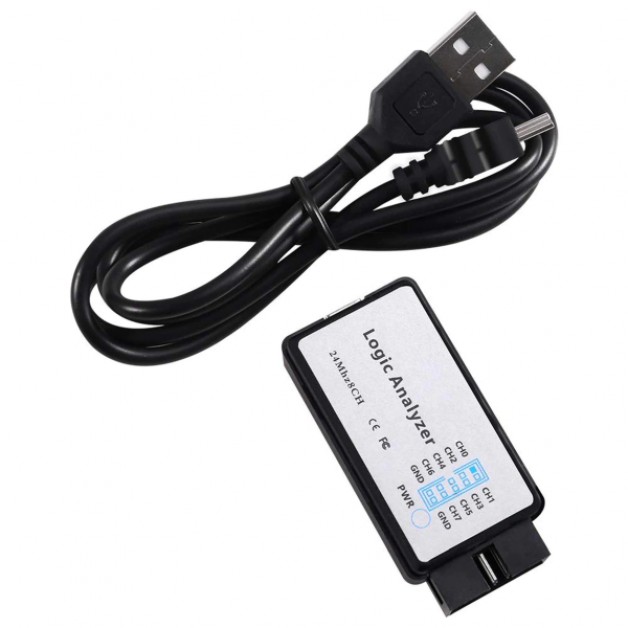

Packaging contains:
- logic analyzer (1x)
- USB cable (1x)
- 8 pin Dupont cable (1x)
