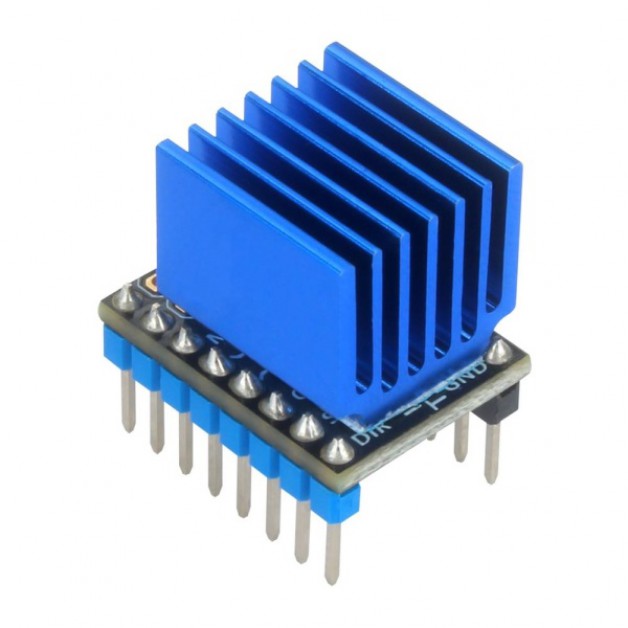

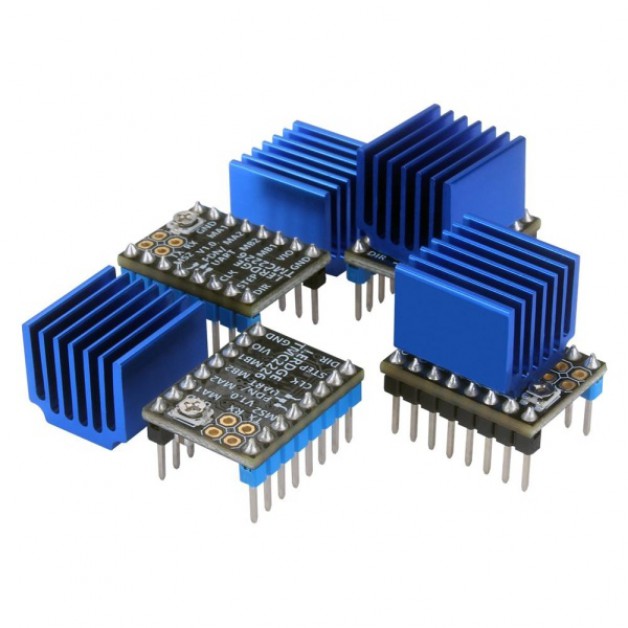

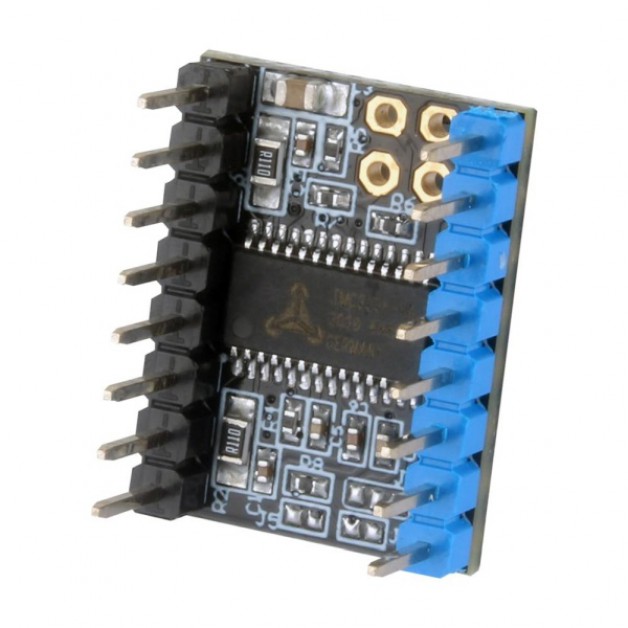

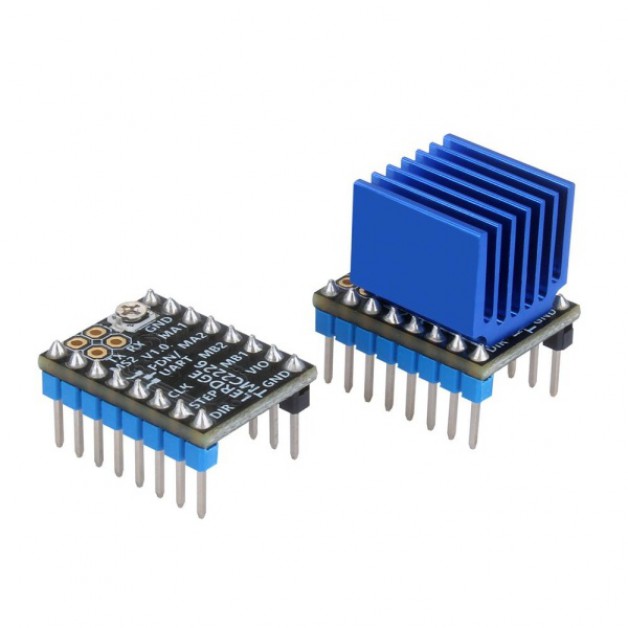

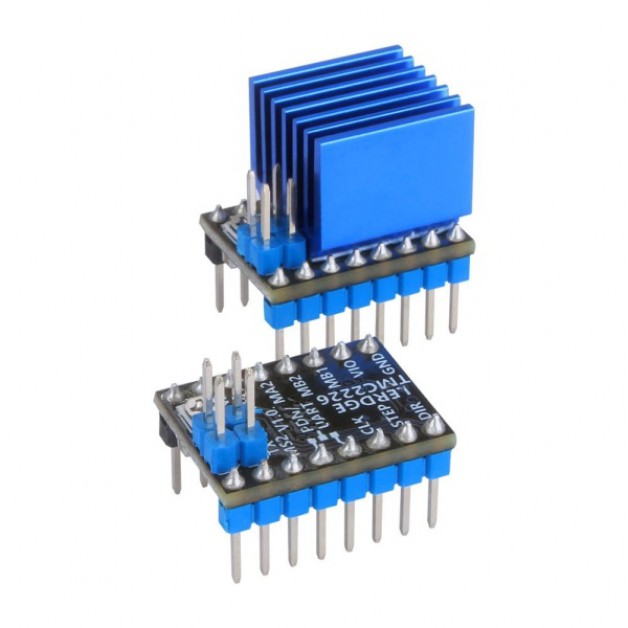

TMC2226 V1.0 Stepper Driver
Product Code: 1000000855€ 8.95
(Ex Tax: € 7.40)
4 or more € 7.95
10 or more € 6.95
The TMC2226 is a complete microstepping motor driver with built-in encoder.
This module can work up to 1/256 step mode.
The SilentStepSticks TMC2226 have output strips with a lower power loss, allowing a higher current.
The driver can drive a stepper motor up to 29V and ±2.8A.
This stepper motor driver module can be used separately or in combination with a CNC shield or 3D printer.
Technical specifications:
- I(max): 2.8A
- I(rms): 2.0A
- V(min): 3V
- V(max): 5V
- V(drive): 4.75V - 29V
- Steps: up to 1/256
- Short-circuit protected: Yes
- Overheating protection: Yes

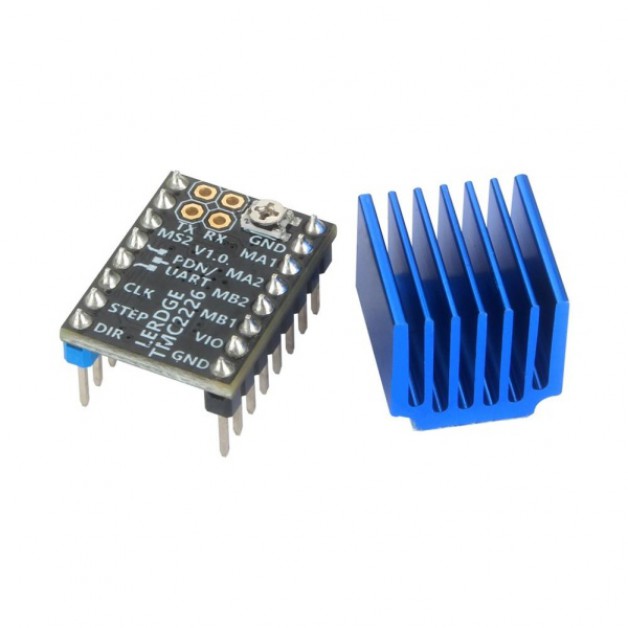

- Heat sink included: Yes
- Modes: Step/Dir or UART
- Additional Features: SpreadCycle, StealthChop2, StallGuard4

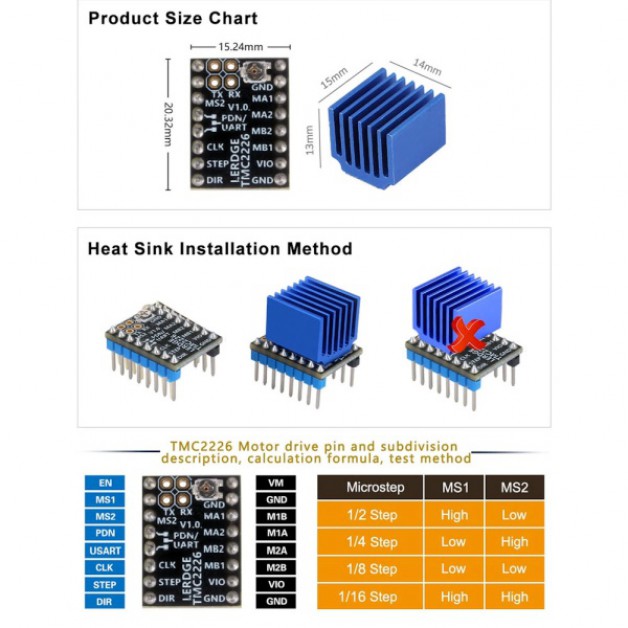

- Dimension: 20mm x 15mm x 4mm (L x W x H)
- Weight: approx. 8 grams
